Basic Info.
Model NO.
RVP42-9M
Certification
FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Application
Home, Industry, Communication Electronic Products, Special Equipment, Car/Motorcycle, Traffic
Description
Activation & Safety Sensors
Output
2 Relays Output. Max.48 VAC/DC. Max.Current 1A
Power Supply
12-28VAC, 12-36VDC
Frequency
24.125GHz
Power
<20dBm
Detection Height
2m to 9m
Angle Adjustmentt
0-180 Degree Longutudinal
Detection Speed
5 Cm/S to 25km/S
Detection Area(30 Degree Angle)
3.0m*3.5m @ Height: 2m; 6.5m*8.5m @ Height: 9m
Working Current
Max.75mA
Power Frequency
50Hz
Working Temperature
-30 to +60
Color
Black
IP Level
IP65
Weight
0.8kg
Transport Package
Carton
Specification
1unit package 14*9*5.5cm
Trademark
JUTAI
Origin
Shenzhen
HS Code
9031809090
Production Capacity
50000/M
Packaging & Delivery
Package Size
27.50cm * 13.00cm * 10.00cm
Package Gross Weight
0.800kg
Lead Time
3 days (1 - 1 Pieces)
5 days (2 - 20 Pieces)
15 days (21 - 50 Pieces)
To be negotiated ( > 50 Pieces)
5 days (2 - 20 Pieces)
15 days (21 - 50 Pieces)
To be negotiated ( > 50 Pieces)
Product Description

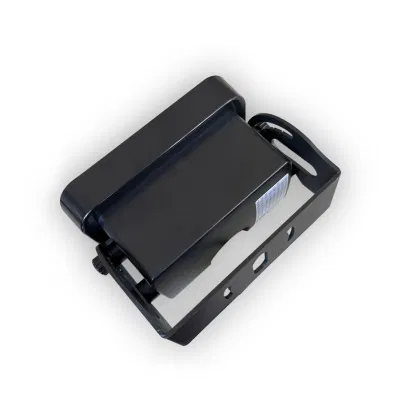

24GHz Microwave Radar Sensor
The RVP42-9M microwave sensors have been specially designed to increase the comfort of opening all types of automatic doors. The RVP42-9M microwaves provide fast detection for all automatic door installations and particularly for applications with high-speed entries. Due to the industrial design and easy installation, these sensors will fit on every header or ceiling in any application you can imagine.
What is the advantage of JUTAI industrial radar?
Check the following details
opening sensor and safety sensor for high-speed door Feature:
1. Two independent outputs, separate detection of people/vehicles;
2. Can block lateral movement
3. Slow detection function
4. Installation height 2m-9m
5. Detection area up to 6.5m×8.5m Simple and practical and powerful
A. Can be installed outdoors, IP65 protection grade.

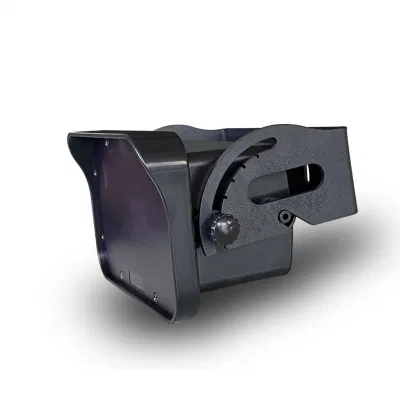

B. The bracket can be adjusted 180°, easy to use.
C. The slow detection function can effectively detect the front fork and pedestrians of the forklift.
D. Dual independent outputs for people and vehicles, and the sensor can also be used in applications where only people are detected.
E. Widely used in various industrial doors, garages and other occasions. Safety sensor: The SS28 device is composed of a transmitter unit and a receiver unit, both contained within sturdy aluminum profiles. Beams of infrared rays are generated capable of detecting the presence of people and / or objects when interrupted. The communication between the transmitter unit and the receiver unit is carried out optically and, therefore, no electrical connection between the two units is necessary.
To avoid reflsections and / or reception errors, a unique identification code is set for each infrared beam. When an object, limb or body of a person interrupts the beam of rays emitted by the transmission unit, the output is immediately opened by the receiver unit, with consequent blocking of the automation. The system is only safe when the TEST system is used, this allows you to check the correct functioning of the barrier (see par. Safety test)
It is a 24G millimeter-wave radar that can distinguish between pedestrians and vehicles by analyzing the characteristics of the human body and vehicle movement and electromagnetic reflection characteristics. It can accurately determine the vehicle's driving direction and filter pedestrians. Users can choose one-way (toward) detection or two-way detection according to actual needs.
What is the advantage of JUTAI industrial radar?
Check the following details
opening sensor and safety sensor for high-speed door Feature:
1. Two independent outputs, separate detection of people/vehicles;
2. Can block lateral movement
3. Slow detection function
4. Installation height 2m-9m
5. Detection area up to 6.5m×8.5m Simple and practical and powerful
A. Can be installed outdoors, IP65 protection grade.
B. The bracket can be adjusted 180°, easy to use.
C. The slow detection function can effectively detect the front fork and pedestrians of the forklift.
D. Dual independent outputs for people and vehicles, and the sensor can also be used in applications where only people are detected.
E. Widely used in various industrial doors, garages and other occasions. Safety sensor: The SS28 device is composed of a transmitter unit and a receiver unit, both contained within sturdy aluminum profiles. Beams of infrared rays are generated capable of detecting the presence of people and / or objects when interrupted. The communication between the transmitter unit and the receiver unit is carried out optically and, therefore, no electrical connection between the two units is necessary.
To avoid reflsections and / or reception errors, a unique identification code is set for each infrared beam. When an object, limb or body of a person interrupts the beam of rays emitted by the transmission unit, the output is immediately opened by the receiver unit, with consequent blocking of the automation. The system is only safe when the TEST system is used, this allows you to check the correct functioning of the barrier (see par. Safety test)
It is a 24G millimeter-wave radar that can distinguish between pedestrians and vehicles by analyzing the characteristics of the human body and vehicle movement and electromagnetic reflection characteristics. It can accurately determine the vehicle's driving direction and filter pedestrians. Users can choose one-way (toward) detection or two-way detection according to actual needs.
| Name | 24G millimeter-wave radar |
| Frequency | 24G |
| Application | Fast Speed Gate |
| Intallation | Cell mounting |
| Angle Ajusting | 90 Degree |
Detection Area
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.

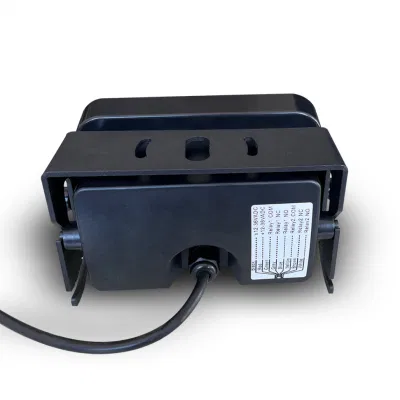

Dual Relays Outputs
It is a fully customizable, hands-free radar motion sensor equipped with dual relays:
Vehicle-detection relay active
Person-detection relay active
Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
Direction Recognition
Energy Savings
It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
Speed up workflows
Open doors without having to stop and push a button. Install or Retrofit For both dock and pedestrian doors with automated solutions.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.

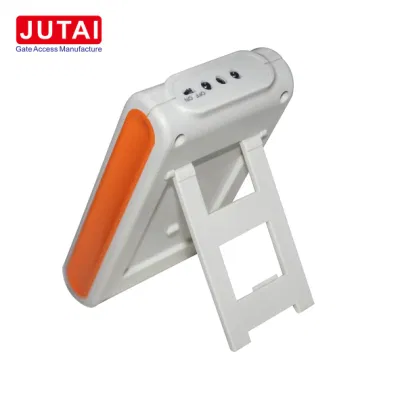

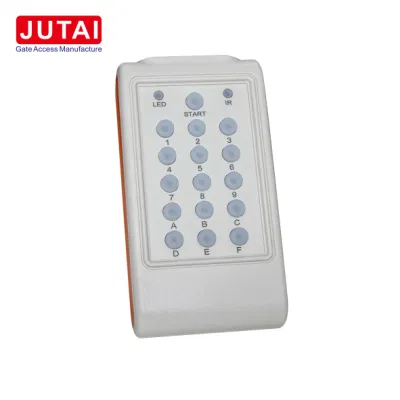

Remote Control Adjustments
Remote control programming enables the user to quickly and safely make changes from the ground.
Vehicle-detection relay active
Person-detection relay active
Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
Direction Recognition
It can be set the direction detection:
1. motion forward and close to the sensor
2. backward movement away from the sensor
3. Forward and backward.
Energy Savings
It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
Speed up workflows
Open doors without having to stop and push a button. Install or Retrofit For both dock and pedestrian doors with automated solutions.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.
Remote Control Adjustments
Remote control programming enables the user to quickly and safely make changes from the ground.
Factory entrances
Pedestrian and parallel traffic rejection
Parking garage detection
Barrier arm activation
