Overview

Basic Info.

Model NO.
FTIR-650
Wavelengths
Infrared Spectrometer
Dispersive Element
Interferometer Spectrometer
Light Number
Monochromator
Certification
RoHS, ISO9001, CE
Customized
Customized
Name
FT-IR Spectrometer
Model
Ftir-650
Wavenumber Range
7800 ~ 350 Cm-1
Resolution
1.0 Cm-1
Detector
High Resolution Dtgs Detector
Beamsplitter
Coated Kbr
Light Source
Long Life, Air Cooled IR Light Source
Electronic System
a/D Converter of 24 Bits at 500MHz, USB 2.0
Power
110-220V AC, 50-60Hz
Transport Package
Hard Wooden Case
Specification
450mm x 350mm x 210mm
Trademark
NANBEI
Origin
China
HS Code
9031801000

Product Description


High Performance Reliable Fourier Transform Infrared Spectroscopy Spectrometer FTIR Price
Product Description

Chemistry Analyzer Fourier Infrared Spectrometer FT-IR Spectrometer FTIR-650

1. Introduction
Thank you for purchase of  FTIR-650 FT-IR Spectrometer from nanbei. This user manual contains information needed to install, operate the instrument and perform user maintenance.
This spectrometer must be operated by qualified personnel.

Parts list

Main Spectrometer 1
Power Supply 1
USB Cable 1
Power Cord 1
Screw Driver, 150 x 6mm 1
Allen Wrench, 2.5mm 1
Replacement Desiccant 1
Polystyrene Film 1
Software CD 1
User Manual 1

2. Specifications

Wavelength Range :7800~375 cm-1
Resolution :1 cm-1
Signal Noise Ratio: 30000:1 (resolution@4cm-1; sample and background scan
for 1 min@2100cm-1)
Detector :High performance DLATGS
Beam splitter: Coated KBr
Light Source :Long life, steady state infrared emitter
Electronic System: 24bit A/D converter at 500MHz, USB 2.0
Power :100-240V, 50/60Hz
Dimensions :450mm x 350mm x 210mm
Weight:16 kg

3. Safety Information


3.1 Fire Safety and Burn Hazards

To avoid any fire safety issues or burn hazards take note of the following guidelines:
· When testing samples they must not be flammable or explosive.
· To purge your spectrometer and accessories only use nitrogen or dried air.
· For replacement of components a 15 minute wait is required after switching the power off.
· Never obstruct ventilation on the spectrometer or power supply.
· The safety of your instrument is affected by the power supply. In the event of replacing the power supply, only use an exact replacement.
· For the replacement of the laser assembly, there is no burn hazard.

3.2 Maneuvering the Spectrometer

Avoid sudden vibrations or collisions while moving the spectrometer. Any larger accessories attached to the spectrometer must be removed before attempting to move the spectrometer.

3.3 Electrical Safety:

The following symbol represents a risk of electric shock in the surrounding area on your spectrometer or power supply.
The FTIR-650 spectrometer and its accessories were designed with protective covers to prevent exposure to dangerous voltage and other electrical hazards.

Warning: If any protective covers on the spectrometer or power supply are or appear damaged, immediately turn off the spectrometer and secure it against any future use. Contact the manufacturer for service.The following symbols appear on your spectrometer and power supply. Take note for safety reasons.

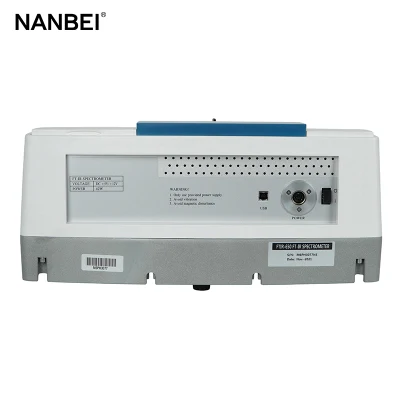

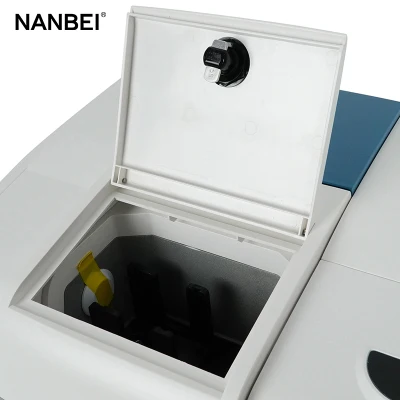

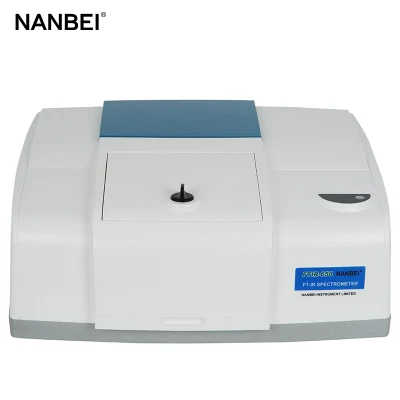

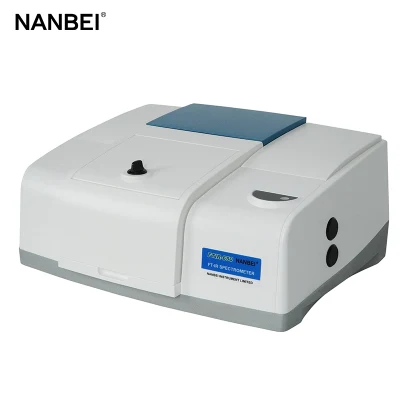

Detailed Photos
Nanbei Ftir Spectrometer Manufacturing Ftir Fourier Transform Infrared Spectrometer with Atr Factory
Nanbei Ftir Spectrometer Manufacturing Ftir Fourier Transform Infrared Spectrometer with Atr Factory
Nanbei Ftir Spectrometer Manufacturing Ftir Fourier Transform Infrared Spectrometer with Atr Factory
Nanbei Ftir Spectrometer Manufacturing Ftir Fourier Transform Infrared Spectrometer with Atr Factory



Product Parameters

Specifications

Wavenumber Range 7800 ~ 350 cm-1
Resolution 1.0 cm-1
Signal Noise Ratio 30000:1 (DTGS, resolution@4cm-1; sample and background scan for 1 min@2100cm-1)
Detector High resolution DTGS detector
Beamsplitter Coated KBr
Light Source Long life, air cooled IR light source
Electronic System A/D converter of 24 bits at 500MHz, USB 2.0
Power 110-220V AC, 50-60Hz
Wavenumber Range 7800 ~ 350 cm-1
Resolution 1.0 cm-1
Signal Noise Ratio 30000:1 (DTGS, resolution@4cm-1; sample and background scan for 1 min@2100cm-1)

Parts included:

No. Description Qty
1 Spectrometer 1
2 ATR 1
3 Power Supply 1
4 Dust Cover 1
5 USB Cable 1
6 Power Cord 1
7 Screw Driver, 150x6mm 1
8 Allen Wrench, 2.5mm 1
9 Replacement Desiccant 1
10 Polystyrene Film 1
11 Software CD 1
