Product Description
New and Original Dual 36V, 1.2-MHz, low-power operational amplifier of TI
OPA2170AIDGKR OPA2171AIDGK OPA2170AIDGK OPA2170AIDCUT
Description
OPA170, OPA2170, and OPA4170 devices (OPAx170) are part of a family of 36V, single-supply, low-noise operational amplifiers in tiny packages capable of operating over a supply voltage range of 2.7V (±1.35V) to 36V (±18V) run.They provide satisfactory offset, drift and bandwidth while maintaining low quiescent current.Single-, dual- and quad-channel versions all share the same technical specifications for maximum design flexibility.
Unlike most op amps, which have only one specified supply voltage, the OPAx170 family of op amps can operate from a nominal voltage range of 2.7V to 36V.Input signals exceeding the supply rails do not cause phase reversal.The OPAx170 series is stable with capacitive loads up to 300pF.The input operates within 100mV of the negative supply rail and within 2V of the positive supply rail.Note that these devices can operate on a full rail-to-rail input of 100mV above the positive supply rail, but performance will suffer when operating within 2V of the positive supply rail.The OPAx170 operational amplifier is specified over the -40°C to +125°C operating temperature range.
OPA2170AIDGKR OPA2171AIDGK OPA2170AIDGK OPA2170AIDCUT
Description
OPA170, OPA2170, and OPA4170 devices (OPAx170) are part of a family of 36V, single-supply, low-noise operational amplifiers in tiny packages capable of operating over a supply voltage range of 2.7V (±1.35V) to 36V (±18V) run.They provide satisfactory offset, drift and bandwidth while maintaining low quiescent current.Single-, dual- and quad-channel versions all share the same technical specifications for maximum design flexibility.
Unlike most op amps, which have only one specified supply voltage, the OPAx170 family of op amps can operate from a nominal voltage range of 2.7V to 36V.Input signals exceeding the supply rails do not cause phase reversal.The OPAx170 series is stable with capacitive loads up to 300pF.The input operates within 100mV of the negative supply rail and within 2V of the positive supply rail.Note that these devices can operate on a full rail-to-rail input of 100mV above the positive supply rail, but performance will suffer when operating within 2V of the positive supply rail.The OPAx170 operational amplifier is specified over the -40°C to +125°C operating temperature range.
Features
• Supply voltage range: 2.7V to 36V, ±1.35V to ±18V
• Low noise: 19 nV/√Hz
• Filtered radio frequency interference (RFI) input
• Input range includes negative supply
• Input range operation to positive supply
• Rail-to-rail output
• Gain bandwidth: 1.2MHz
• Low quiescent current: 110μA per amplifier
• High common-mode rejection: 120dB
• Low bias current: 15pA (max)
• Available in industry standard and micro packages
• Create a custom design using the OPAx170 with the help of WEBENCH® Power Designer
Applications
• Tracking amplifiers within power modules
• Commercial power supplies
• Sensor amplifiers
• Bridge amplifiers
• Temperature measurement
• Strain gauge amplifiers
• Precision integrators
• Battery powered instrumentation
• Testing equipment
• Low noise: 19 nV/√Hz
• Filtered radio frequency interference (RFI) input
• Input range includes negative supply
• Input range operation to positive supply
• Rail-to-rail output
• Gain bandwidth: 1.2MHz
• Low quiescent current: 110μA per amplifier
• High common-mode rejection: 120dB
• Low bias current: 15pA (max)
• Available in industry standard and micro packages
• Create a custom design using the OPAx170 with the help of WEBENCH® Power Designer
Applications
• Tracking amplifiers within power modules
• Commercial power supplies
• Sensor amplifiers
• Bridge amplifiers
• Temperature measurement
• Strain gauge amplifiers
• Precision integrators
• Battery powered instrumentation
• Testing equipment
_________________________________________________________________________________________________________
Typical Application
Typical Advanced Configuration and Power Interface (ACPI) Application

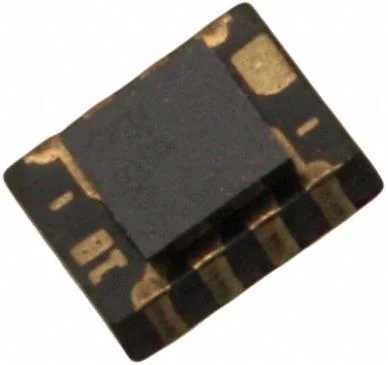

New and Original LMZ10500 650mA micro module with 5.5V maximum input voltage of TI
LMZ10500SILR
Description
The LMZ10500 micro module features an easy-to-use DC/DC step-down design for use in space-constrained applications Drives loads up to 650mA.The device requires only an input capacitor, an output capacitor, a small VCON filter capacitor, and two resistors for basic operation.The tiny module is available in an 8-pin μSiP package and features an integrated inductor.Soft-start functionality based on internal current limit, current overload protection, and thermal shutdown are also provided.
FEATURES
• Up to 650 mA output current
• 2.7V to 5.5V input voltage range
• 0.6V to 3.6V output voltage range
• Up to 95% efficiency
• Integrated inductor
• 8-lead MicroSiP package
• -40°C to 125°C of junction temperature range
• Adjustable output voltage
• 2MHz fixed PWM switching frequency
• Integrated compensation
• Soft-start function
• Current limit protection
• Thermal shutdown protection
• Input voltage UVLO for power-up, power-down and undervoltage conditions
• Adopt only 5 external components
- resistor divider and 3 ceramic capacitors
• Small design size
• Low output voltage ripple
• Convenient component selection and simple PCB layout
• High efficiency helps reduce heat generated by the system
• Uses LMZ10500 and Create custom designs with WEBENCH® Power Designe
Applications
• Conversion from 3.3V and 5V supply rails to point-of-load
• Space-constrained applications
• Low output noise applications 3
Description
The LMZ10500 micro module features an easy-to-use DC/DC step-down design for use in space-constrained applications Drives loads up to 650mA.The device requires only an input capacitor, an output capacitor, a small VCON filter capacitor, and two resistors for basic operation.The tiny module is available in an 8-pin μSiP package and features an integrated inductor.Soft-start functionality based on internal current limit, current overload protection, and thermal shutdown are also provided.
FEATURES
• Up to 650 mA output current
• 2.7V to 5.5V input voltage range
• 0.6V to 3.6V output voltage range
• Up to 95% efficiency
• Integrated inductor
• 8-lead MicroSiP package
• -40°C to 125°C of junction temperature range
• Adjustable output voltage
• 2MHz fixed PWM switching frequency
• Integrated compensation
• Soft-start function
• Current limit protection
• Thermal shutdown protection
• Input voltage UVLO for power-up, power-down and undervoltage conditions
• Adopt only 5 external components
- resistor divider and 3 ceramic capacitors
• Small design size
• Low output voltage ripple
• Convenient component selection and simple PCB layout
• High efficiency helps reduce heat generated by the system
• Uses LMZ10500 and Create custom designs with WEBENCH® Power Designe
Applications
• Conversion from 3.3V and 5V supply rails to point-of-load
• Space-constrained applications
• Low output noise applications 3

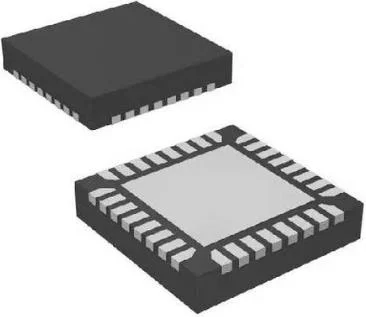

New and original SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz wireless MCU with 128kB Flash of TI
Description
The CC1310 device is a cost-effective ultra-low power sub-1GHz radio frequency device, built by Texas Instruments (TI)™ and part of the SimpleLink™ microcontroller (MCU) platform.The platform includes Wi-Fi®, Bluetooth® low energy, sub-1GHz, Ethernet, Zigbee®, Thread and host MCU.All these devices share a common, easy-to-use development environment that includes a single core software development kit (SDK) and a rich toolset.With the one-time integration of the SimpleLink platform, users can add any combination of devices from the portfolio to their designs, enabling 100% code reuse as design requirements change.
With extremely low active RF and MCU current consumption and flexible low-power modes, the CC1310 device ensures excellent battery life and enables long-range operation on small coin cell batteries and in energy harvesting applications.
The CC1310 device is a member of the CC13xx and CC26xx families of cost-effective, ultra-low power wireless MCUs capable of supporting sub-1GHz radio frequencies.The CC1310 device combines a flexible, ultra-low power RF transceiver with a powerful 48MHz Arm® Cortex®-M3 microcontroller on a platform that supports multiple physical layer and RF standards.A dedicated radio controller (Cortex®-M0) handles low-level RF protocol commands stored in ROM or RAM, thus ensuring ultra-low power consumption and flexibility.The CC1310 device achieves low power consumption without sacrificing RF performance; the CC1310 device has excellent sensitivity and robustness (selectivity and blocking)
performance.
The CC1310 device is a highly integrated true single-chip solution integrating a complete RF system and on-chip DC/DC converter.
Sensors are processed in an ultra-low-power manner by a dedicated ultra-low-power autonomous MCU (which can be configured to handle analog and digital sensors), so the main MCU (Arm® Cortex®-M3) can maximize sleep time.
The CC1310 device's power and clock management system and radio system require specific configuration and are handled by software to operate correctly, which is implemented in TI-RTOS.TI recommends using this software framework for all application development processes for this device.The complete TI-RTOS and device drivers are available as free source code.
• Microcontroller
- Powerful Arm® Cortex®-M3 processor
- EEMBCCoreMark® score: 142
- EEMBCULPBench™ score: 158
- Clock rates up to 48MHz
- 32KB, 64KB and 128KB in-system programmable Flash memory
- 8KB cached static random access memory (SRAM) (or used as general purpose RAM)
- 20KB ultra-low leakage SRAM
- 2-pin cJTAG and JTAG debug
- supports over-the-air (OTA) upgrades Ultra-low power sensor controller
- available Runs autonomously independent of the rest of the system
- 16-bit architecture
- 2KB of ultra-low leakage code and data SRAM
• Efficient code size architecture, placing parts of TI-RTOS, drivers, bootloader in ROM
• RoHS compliant packaging
- 7mm × 7mmRGZVQFN48 package (30 general-purpose input/output (GPIO))
- 5mm × 5mmRHBVQFN32 package (15 GPIOs)
- 4mm × 4mmRSMVQFN32 package (10 GPIOs)
• Peripherals
- All digital peripheral pins can be connected to any GPIO
- Four general-purpose timer modules (8 × 16-bit or 4 × 32-bit, both with pulse width modulation (PWM))
- 12-bit analog-to-digital converter (ADC), 200MSPS, 8-channel analog multiplexer
- Continuous Time Comparator
- Ultra-Low Power Clock Comparator
- Programmable Current Source
- UART
- 2 Synchronous Serial Interfaces (SSI) (SPI, MICROWIRE, and TI)
- I²C, I2S
- Real-Time Clock (RTC)
- AES-128 Secure Module
- True Random Number Generator (TRNG)
- Supports eight capacitive sensing buttons
- Integrated temperature sensor
• External systems
- On-chip internal DC/DC converter
- Seamless integration of SimpleLink™ CC1190 range extender
• Low power consumption
- Wide supply voltage range: 1.8 to 3.8V
- RX: 5.4mA
- TX (at +10dBm): 13.4mA
- 48MHz active mode microcontroller (MCU) running Coremark: 2.5mA (51μA/MHz)
- Active mode MCU: 48.5CoreMark/mA
- Active mode sensor controller (24 MHz): 0.4mA + 8.2μA/ MHz
- Sensor controller, wakes up once per second to perform a 12-bit ADC sample: 0.95µA
- Standby current: 0.7µA (RTC running, RAM and CPU maintained)
- Shutdown current: 185nA (on external event) Wake-up) Radio Frequency (RF) Section
- Excellent receiver sensitivity:
-124dBm in long range mode;
-110dBm at 50kbps
- Excellent selectivity (±100kHz): 56dB
- Excellent blocking performance (±10MHz) : 90dB
- Programmable output power up to +9dBm
- Single-ended or differential RF interface
- Suitable for systems compliant with global RF specifications
- ETSIEN 300 220 and EN 303 204 (Europe)
- FCCCFR47 Part 15 (USA)
- ARIBSTD-T108 (Japan)
- Wireless M-Bus (EN 13757-4) and IEEE® 802.15.4g PHY
•Tools and development environment
- Full-featured, low-cost development kit
- Multiple reference designs for different RF configurations
- Packet snooping PC Software
- SensorControllerStudio
- SmartRF™Studio
- SmartRFFlashProgrammer2
- IAR EmbeddedWorkbench® (for Arm)
- CodeComposerStudio™ (CCS) IDE
- CCSUniFlash
Applications
• 315, 433, 470, 500, 779, 868, 915, 920MHz Industrial, Scientific and Medical (ISM) and Short Range Device (SRD) systems
• Low power wireless systems with channel spacing of 50kHz to 5MHz
• Home and building automation
• Wireless alarm and security systems
• Industrial monitoring and control
• Smart grid and automatic meter reading
• Wireless healthcare applications
• Wireless Sensor Networks
• Active Radio Frequency Identification (RFID)
• IEEE802.15.4g, IP-enabled Smart Objects (6LoWPAN), Wireless Instrument Bus, KNX Systems, Wi-SUN™ and Proprietary Systems
• Energy Harvesting Applications
• Electronic Shelf Labels (ESL)
•Remote sensor applications
•Heat distribution tables
New and original Wide VIN, Multi-Output DC/DC Converter and PowerPath Controller of Linear Technology
Description
The LTC ® 3101 is a complete power management solution
for low power portable devices. It provides three high
effi ciency switching DC/DC converters which seamlessly
transition from battery to USB/wall adapter power when
available. A synchronous buck-boost regulator provides
complete fl exibility, allowing operation from a single
Li-Ion/Polymer battery, 2 to 3 AA cells, a USB port or any
other power source operating from 1.8V to 5.5V.
Two always-alive outputs, a 50mA LDO and a 200mA MAX
output that tracks the higher voltage input supply, provide
power for critical functions or additional external regula-
tors. Flash memory cards can be directly powered from
the protected 100mA Hot Swap output. Pushbutton control
logic and a programmable-duration microprocessor reset
generator simplify interfacing to a microprocessor while
internal sequencing and independent enable pins provide
fl exible power-up options. The LTC3101 is available in a low
profi le (0.75mm) 24-lead 4mm × 4mm QFN package
Features
Low Loss PowerPath™ Control: Seamless,
Automatic Transition from Battery to USB or
Wall Adapter Power
Wide V IN
Range: 1.8V to 5.5V
Buck-Boost V OUT : 1.5V to 5.25V
Buck-Boost Generates 3.3V at 300mA for V IN
≥ 1.8V, 3.3V at 800mA for V IN ≥ 3V
Dual 350mA Buck Regulators, V OUT : 0.6V to V IN
38μA Quiescent Current in Burst Mode ® Operation
1.8V, 50mA Always-On LDO
Protected 100mA Hot Swap™ Output
Pushbutton On/Off Control
Current Limited 200mA MAX Output
Programmable Power-Up Sequencing
24-lead 4mm × 4mm × 0.75mm QFN
Package
Low Loss PowerPath™ Control: Seamless, Package
Automatic Transition from Battery to USB or
Wall Adapter Power
Wide V IN
Range: 1.8V to 5.5V
Buck-Boost V OUT : 1.5V to 5.25V
Buck-Boost Generates 3.3V at 300mA for V IN
≥ 1.8V, 3.3V at 800mA for V IN ≥ 3V
Dual 350mA Buck Regulators, V OUT :
0.6V to V IN
38μA Quiescent Current in Burst Mode ® Operation
1.8V, 50mA Always-On LDO
Protected 100mA Hot Swap™ Output
Pushbutton On/Off Control
Current Limited 200mA MAX Output
Programmable Power-Up Sequencing
24-lead 4mm × 4mm × 0.75mm QFN Package
Applications
Ultra-Portable Digital Video Cameras
Personal Handheld GPS Navigators
Portable Medical Instruments
New and Original MCU 16Bit HCS12 CISC 128KB Flash 2.5V/5V Automotive 112Pin LQFP T/R of NXP
TMS320F2812ZAYS TMS320F2810, TMS320F2811 and TMS320F2812
Introduction
The MC9S12HZ256 microcontroller units (MCU) are 16-bit devices composed of standard on-chip
peripherals including a 16-bit central processing unit (HCS12 CPU), up to 256K bytes of Flash EEPROM
or ROM, up to 12K bytes of RAM, 2K bytes of EEPROM, two asynchronous serial communications
interfaces (SCI), a serial peripheral interface (SPI), an IIC-bus interface (IIC), an 8-channel 16-bit timer
(TIM), a 16-channel, 10-bit analog-to-digital converter (ATD), a six-channel pulse width modulator
(PWM), and two CAN 2.0 A, B software compatible modules (MSCAN). In addition, they feature a 32x4
liquid crystal display (LCD) controller/driver, a pulse width modulator motor controller (MC) consisting
of 16 high current outputs suited to drive up to four stepper motors, and four stepper stall detectors (SSD)
to simultaneously calibrate the pointer position of each motor. System resource mapping, clock generation,
interrupt control, and external bus interfacing are managed by the HCS12 Core. The MC9S12HZ256 have
full 16-bit data paths throughout. The inclusion of a PLL circuit allows power consumption and
performance to be adjusted to suit operational requirements. In addition to the I/O ports available in each
module, 8 general-purpose I/O pins are available with interrupt and wake-up capability from stop or wait
mode.
For information regarding the HCS12 CPU instruction set, please see the
HCS12 CPU Reference Manual
,Freescale document order number S12CPUV2.
Feature
•
HCS12 core
- 16-bit HCS12 CPU
Upward compatible with M68HC11 instruction set
Interrupt stacking and programmer's model identical to M68HC11
16-bit ALU
Instruction queue
Enhanced indexed addressing
- MEBI (multiplexed external bus interface)
- MMC (module mapping control)
- INT (interrupt control)
- DBG (debugger and breakpoints)
- BDM (background debug mode)
•
Memory
- 256K, 128K, 64K, 32K Flash EEPROM or ROM
- 2K, 1K byte EEPROM
- 12K, 6K, 4K, 2K byte RAM
•
CRG (low current oscillator, PLL, reset, clocks, COP watchdog, real time interrupt, clock monitor)
•
Analog-to-digital converter
- 16 channels, 10-bit resolution
- External conversion trigger capability
•
Two 1-Mbps, CAN 2.0 A, B software compatible modules
- Five receive and three transmit buffers
- Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or
8x8bit
- Four separate interrupt channels for Rx, Tx, error and wake-up
- Low-pass filter wake-up function
- Loop-back for self test operation
•
Timer
- 16-bit main counter with 7-bit prescaler
- 8 programmable input capture or output compare channels
- Two 8-bit or one 16-bit pulse accumulators
•
6 PWM channels
- Programmable period and duty cycle
- 8-bit 6-channel or 16-bit 3-channel
- Separate control for each pulse width and duty cycle
- Center-aligned or left-aligned outputs
- Programmable clock select logic with a wide range of frequencies
- Fast emergency shutdown input
•
Serial interfaces
- Two asynchronous serial communications interfaces (SCI)
- Synchronous serial peripheral interface (SPI)
- Inter-integrated circuit interface (IIC)
•
Liquid crystal display (LCD) driver with variable input voltage
- Configurable for up to 32 frontplanes and 4 backplanes or general-purpose input or output
- 5 modes of operation allow for different display sizes to meet application requirements
- Unused frontplane and backplane pins can be used as general-purpose I/O
•
PWM motor controller (MC) with 16 high current drivers
- Each PWM channel switchable between two drivers in an H-bridge configuration
- Left, right and center aligned outputs
- Support for sine and cosine drive
- Dithering
- Output slew rate control
•
Four stepper stall detectors (SSD)
- Full step control during return to zero
- Voltage detector and integrator / sigma delta converter circuit
- 16-bit accumulator register
- 16-bit modulus down counter
•
112-pin LQFP and 80-pin QFP packages
- 85 I/O lines with 5-V input and drive capability
- 5-V A/D converter inputs
- 8 key wake up interrupts with digital filtering and programmable rising/falling edge trigger
•
Operation at 50 MHz equivalent to 25-MHz bus speed
•
Development support
- Single-wire background debug™ mode (BDM)
- Debugger and on-chip hardware breakpoints
| D/C | 2022+ |
| Qty in stock | More than 500 pcs-1000pcs |
| Lead time | ASAP |
| Remark | New and original ;100% good quality |
| Warranty | 60 days warranty,100% brand new ,can send to White horse for quality checking |
| Payment | T/T ;HSBC,CITI |
| Shipment | UPS, DHL ,TNT ,FEDEX or by your own forwarder |
About US
R&OTECH (HK) Technology Co., Limited is a professional electronic component supplier. The company is committed to navigation, shipping, exploration, industrial automation, imaging, satellite navigation, instrumentation, scientific research, medical, communications, high-end electronic products and other auxiliary products supply, with the world's major enterprises to maintain a long-term, friendly and stable relations of cooperation. We offer IC, Module, Connector, Capactior. Resistor to customers all over the world.
Warranty Terms
The warranty applies to all electronic components sold by R&OTECH Electronics, which are operated in accordance with the product and operational specifications. R&OTECH agrees to transfer to Customer whatever transferable warranties our receives from the manufacturer of products sold to Customer. R&OTECH electronics extends two months limited warranty for the products it sells. This warranty is contingent upon proper storage and handling of the product and does not cover products that have been subjected to physical abuse or electrical stress from improper handling and storage of Electro Static Discharge ("ESD") sensitive products. All ESD sensitive products must be stored per manufacturer's recommendations. No warranty will apply if the product has been subject to misuse, static discharge, improper storage or handling, non-adherence to ESD storage and handling procedures, neglect, accident, modification, or has been soldered or altered in any way whatsoever.
Counterfeit Check
R&OTECH recognizes that counterfeiting of components is a serious problem in the worldwide.
All products ordered from us can have a number of tests completed before it is shipped to you. It is against company policy to ship failed parts; meaning you will always receive the best product.
This is achieved as we can send products to an independent, ISO approved testing laboratory, when necessary, to make sure our clients are provided with 100% New and Original products. We also, from time to time, perform detailed testing in accordance with our quality procedure in order for us to evaluate the effectiveness and quality standards of our suppliers.
