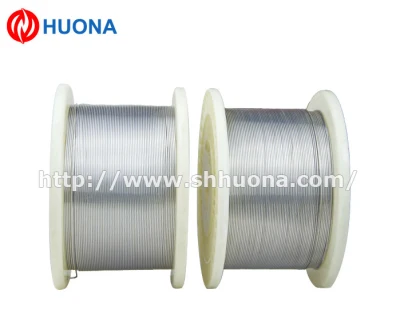

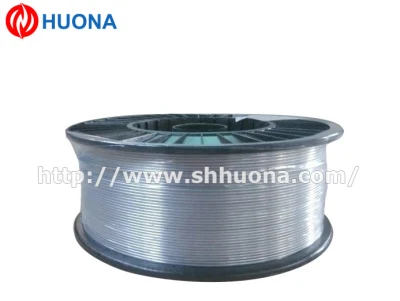

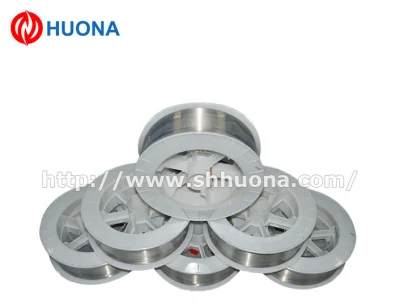

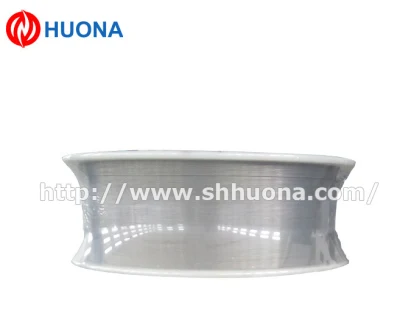

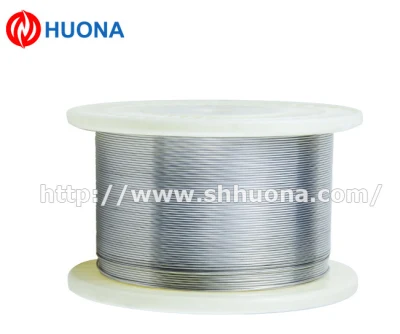

Ni40CO25mo4 Soft Magnetic Alloy Wire

Get high-quality Ni40CO25mo4 Soft Magnetic Alloy Wire from our factory. We are a leading manufacturer of magnetic alloy wires for various applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Ni40Co25Mo4
State
Soft State
Size
1.2mm
Features
Wear Resistant High Permeability Soft Magnetic All
Name
Ni65mo2
Density
8.6
Curie Point
460
OEM
Yes
Sample
Free
Stock
Seyn
Transport Package
Wooden Case
Specification
0.7mm
Trademark
HUONA
Origin
Shanghai
HS Code
750620000
Production Capacity
50ton/Month

Product Description

Ni40Co25Mo4  Soft Magnetic Alloy Wire Dynamax

Moment of magnetic alloy
Moment of a magnetic alloy is characterized by the magnetic anisotropy magnetic alloy, the grain orientation texture and magnetic domain orientation texture and produce magnetic anisotropy, easy magnetization direction of this alloy has the close rectangular hysteresis loop, magnetic moment than Br/Bs usually above 85%.


Grain orientation texture of the alloy, it is through with great after cold rolling deformation texture, and then in the appropriate high temperature annealing, recrystallization dog, make the grain of the magnetization axis neatly arranged in a certain direction, when the magnetization magnetization axis direction, and obtain high moment of magnetic ratio, high permeability and low coercive force.Usually require this kind of alloy strip thickness below 0.1 mm.


Alloy, magnetic domain orientation texture is after high temperature annealing heat treatment in magnetic field, to take advantage of the magnetic domain orientation texture.Along the direction of magnetic field treatment with high magnetic torque ratio and high permeability.This alloy strip thickness can be thicker than the grain orientation of magnetic alloy strip thickness, in use around the roll ring formation, can also be made from stamping cyclization and other easy to the shape of the magnetic field heat treatment.


Moment of magnetic alloy is mainly used in the manufacture of magnetic amplifier, magnetic modulator, small and medium-sized power pulse transformer and square-wave transformers, magnetic core memory device and computer components etc.

The moment of magnetic alloy grades and ingredients
Moment of magnetic alloy grades and chemical composition are shown in table.One j51, 1 j52, 1 j83 for magnetic alloys, grain orientation moment j67 j34, 1 j65, 1 and 1 j403 magnetic domain orientation of moment of magnetic alloy.

brand Chemical composition
Ni Mo Mn Co Si Cu
Fe C P S
1j34 33.5~35.0 2.80~3.20 0.30~0.60 28.5~30.0 0.15~0.30 0.20 Bal 0.03 0.02 0.02
1j51 49.0~50.5 - 0.30~0.60 - 0.15~0.30 0.20 Bal 0.03 0.02 0.02
1j52 49.0~51.0 1.80~2.20 0.30~0.60 - 0.15~0.30 0.20 Bal 0.03 0.02 0.02
1j65 64.5~66.0 - 0.30~0.60 - 0.15~0.30 0.20 Bal 0.03 0.02 0.02
1j67 64.5~66.0 1.80~2.20 0.30~0.60 - 0.15~0.30 0.20 Bal 0.03 0.02 0.02
1j83 78.5~79.5 2.80~3.20 0.30~0.60 - 0.15~0.30 0.20 Bal 0.03 0.02 0.02
1j403 39.0~41.0 3.80~4.20 0.30~0.60 24.5~25.5 0.15~0.30 0.20 Bal 0.03 0.02 0.02

Physical properties
brand Resistivity
(μΩ·m)
Density
(g/cm³)
Curie point
(ºC)
Linear expansion coefficient
1j430 0.55 8.55 600
1j34 0.50 8.70 580 11.2
1j51 0.45 8.20 500 9.2
1j52 - 8.20 -
1j65 0.25 8.35 600 12.20
1j67 0.45 8.48 530
1j83 0.50 8.60 460 12.20


Soft magnetic alloy are in weak magnetic field with high permeability and low coercive force of alloys.This kind of alloy are widely used in radio electronics, precision instruments and meters, remote control and automatic control system, the combination is mainly used for energy conversion and information processing, the two aspects of is an important material in the national economy.




Ni40CO25mo4 Soft Magnetic Alloy Wire

2.Usage

It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

3.Features

1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;

4. Packing detail

 1). Coil (plastic spool) + compressed ply-wooden case + pallet
 2). Coil (plastic spool) + carton + pallet
 5. Products and services

1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
