Basic Info.
Model NO.
MV2025TYME
Dimension
225mm×180mm×260mm
Weight
9kg
Transport Package
Carton Paper
Specification
ISO9001, SGS
Trademark
ALLTECH
Origin
Shenzhen, China
Production Capacity
5000pieces/Year
Product Description
Functions & Features:

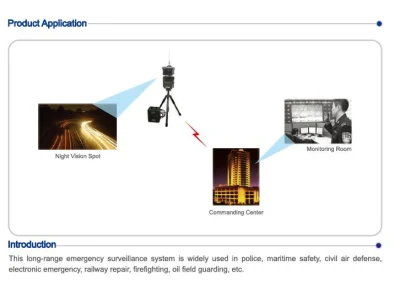

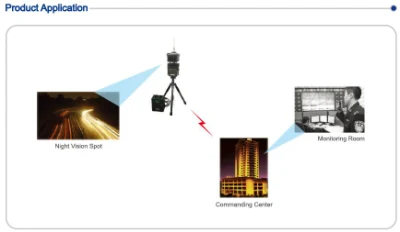

n Applications for border defence, customs, airport, oil field, public security, traffic and forest fire prevention
n Passive infrared thermal imaging technology
n Uncooled vanadium oxide (VOx) focal plane array
n Transmission encryption
n Darkness employment without any infrared lighting
n Wireless PTZ command control
n DC (lithium battery) and AC power supply
n Receiver builtin networked transmission (MPEG-2/H.264) and video recording functions
n Working frequency and other parameters directly display on frequency controller
n Controlled infrared lamp, black and white mode/color mode remote command switching

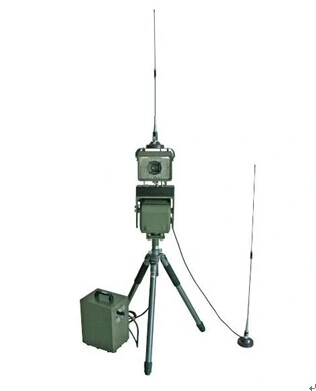

| Double-lens Night-vision Device | ||||
| Infrared thermal imaging | Working band | 7~14μm | ||
| Time constant | <21ms | |||
| NETD | <0.1°C | |||
| Lens focal length | Fixed focus and aperture, focal length 75mm | |||
| Digital zoom | 2X | |||
| Picture processing | Digital image detailed enhancement(DDE) | |||
| Human detected distance | 1100m | |||
| Filed (horizontal*vertical) | 9.3°×7° | |||
| Sensor array element number | 320×240 | |||
| Spatial resolution | 0.2~0.5mrad | |||
| Maximum aperture | 1.4 | |||
| Day-and-night Camera | CCD | 1/3" | ||
| Effective pixels | 440K | |||
| Video output | 1Vpp-75Ω | |||
| Horizontal resolution | 540TVL | |||
| Minimum illumination | Color: 0.02 LX F1.2/ White and black: 0.002 LXLx F1.2 | |||
| Automatic gain control | 8~36dB | |||
| SNR | 50dB | |||
| Focal length | 10.0-200.0mm | |||
| Aperture range | F1.8-360 | |||
| Angle of view (D×H×V) | Wide angle 35.7°× 26.8° | |||
| Far end 1.9°× 1.4° | ||||
| Minimum object distance | 1.5m | |||
| Dimension | 385mm×200mm×200mm | |||
| Weight | 5.7kg | |||
| PTZ Control | ||||
| Voltage input | DC12V~16V/1.5A | |||
| Limit adjustament | Externally adjusted | |||
| Speed | Horizontaol 0.5°~10°/s | |||
| Vertical 0.5°~10°/s | ||||
| Rotation angle | Horizontal 0-355° | |||
| Vertical +45° to -85° | ||||
| Dimension | 225mm×180mm×260mm | |||
| Weight | 9kg | |||
| Transmitter Technical Parameters | ||||
| Working voltage V | DC12V~DC16V | |||
| Working current A | ≤[email protected] | |||
| Frequency output | 300-450MHz,560-760MHz or user customized | |||
| Modulation | COFDM | |||
| Constellation | QPSK, 16QAM, 64QAM optional | |||
| FEC | 1/2, 2/3, 3/4, 5/6,7/8 optional | |||
| GUI | 1/32, 1/16, 1/8, 1/4 optional | |||
| Carrier | 2K | |||
| Frequency bandwidth | 1.25/2.5/6/7/8MHz @MPEG-2, 1.5/2/4/6/7/8MHz @ H.264 | |||
| Power output | 30dBm adjustable with 1dB step | |||
| Power flatness | Full band ≤2dB, 8MHz (within)≤0.5dB | |||
| C/N | ≥28dB@30dBm | |||
| Video input level | 1Vp-p@75Ω, PAL | |||
| Video resolution | 720x576(PAL) 720x480(NTSC) | |||
| Video bitrate | 0.9-15Mbps(MAX) | |||
| Encryption | AES /ALLTECH Basic Scrambling | |||
| Lithium Battery Package Technical Parameters | ||||
| Battery capacity | 12V×100AH | |||
| Charging time | 12 hours | |||
| Battery package weight | 12.3kg | |||
| Lasting time | ≥18 hours | |||
| Environment | ||||
| Temperature | -25°C~55°C | |||
| Humidity | 30%~90% | |||
| Storage temperature | -40°C~70°C | |||
