Basic Info.
Model NO.
TT Crystal 19
Shape
Single-lens
Material
Optical Glass
Lenses Color
Clear
Certification
ISO9001
Customized
Customized
Coating
HC
Min
1 Unit
Payment Term
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Thickness
as Required
Surface Quality
40-20 or Better
Polished
Yes
Centration
1arc Minutes
Bevel
Protective Bevel as Needed
Wavelength Range
400nm-700nm
Transport Package
Carton, Blister, Customized
Specification
As required
Trademark
TT
Origin
Tianjin
HS Code
9001909090
Production Capacity
4000pieces/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 18.00cm
Package Gross Weight
1.000kg
Product Description

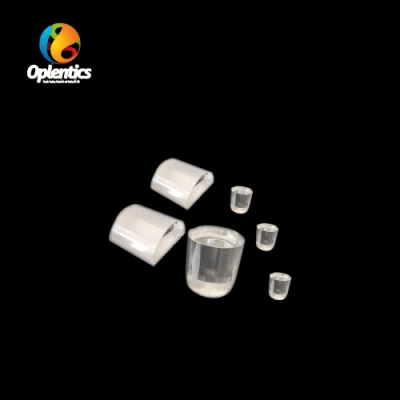

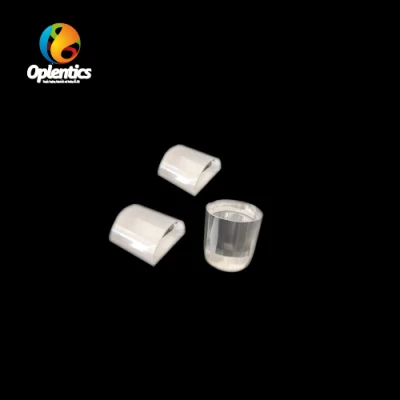

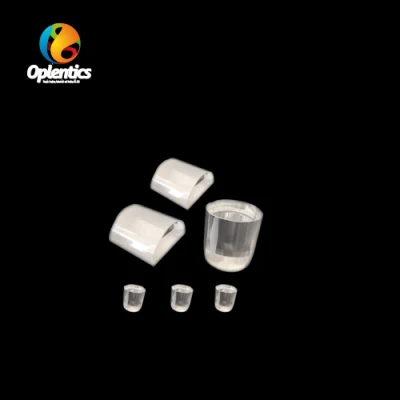

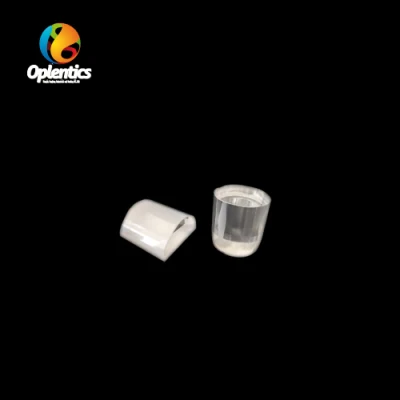

Optical Czochralski Lithium Niobate (LiNbO3, LN) Crystals for Holographic Recording
LiNbO3 crystals are the most commonly used material for pockel cells, Q-switches and phase modulators, waveguide substrates, surface acoustic wave (SAW) wafers, etc.
Lithium niobate (LiNbO3, LN) crystals doped with iron (Fe:LiNbO3) is an attractive photorefractive material, due to high photorefractive sensitivity, high electro-optic coefficients and diffraction efficiency, chemomechanical properties. Fe:LiNbO3 crystals are grown by Czochralsky method and available in large size. Wide range of available dopants and levels enable to adjust material properties for particular applications. What is more, Fe:LiNbO3 crystals feature ease to handle, low cost, therefore suitable for volume production.
Main features
High electro-optic coefficient (r41=5 pm/V)
High phase conjugation efficiency
Available in large size elements or wafers up to 3"
Customization available upon request
Application examples
Spatial light modulators
Optical switches
Holographic recording
Optical waveguides
Main properties
Chemical formula: Fe:LiNbO3
Crystal structure: Trigonal, 3m
Density: 4,64 g/cm3
Mohs hardness: 5
Transparency range : 0,35 - 5,5 μm
Refractive indices @0,63 μm: ne = 2,20 no = 2,29
Electro-optic coefficients: r22 = 6,8 pm/V r31 = 10 pm/V r33 = 32 pm/V
Dielectric constants: e11 = 85 e33 = 30
Manufacturing accuracy of Optical LiNbO3 Crystal or according to customer's need
Application field
Factory:
Tianjin Tengteng Optoelectronic Technology Co., Ltd. was established in 1995, focused on production, research and sales of precision optics. We have professional engineers to research and develop, and design all kinds of lens.
Other Lenses Handle
Optical Lens Design
Lens assembly and debugging
Packaging& Shipping
Package detail:
Inside Packing: Special protective packing for optical products
Outside Packing: Carton
Packing can be made according to customer's need
Payment Term:
T/T,Western Union,Paypal,L/CCustomer Question & Answer
2.What's your minimum order quantity?
1 unit.
3.What's your payment term?
T/T,Letter of Credit, Western Union etc.
4.Could I get free samples before making an order?
Your samples fee will be refunded when you place a large order.
5.Do you have professional person to design according to my requirement?
Of course, we have R&D department to work with you and provide you the best service until you will be satisfactory.
6. What's the lead time?
It is up to your quantity and specification and our stock.
Your products will be sent within 2 days once you make payment for the stock products.
7. Do you have enough stock?
Sure. We have enough stock because our factory is in this area for over 20 years.You can contact our salesperson to get stock at any time.
8. Can you accept OEM or ODM?
Yes, we accept all OEM and ODM.
9. Do you give a warranty of your products?
Yes, if there is a quality problem, you can contact us by email or skype or whatsapp, we can give you the solution in time. We will rework or provide the replacements to you at our cost according to actual conditions.
LiNbO3 crystals are the most commonly used material for pockel cells, Q-switches and phase modulators, waveguide substrates, surface acoustic wave (SAW) wafers, etc.
Lithium niobate (LiNbO3, LN) crystals doped with iron (Fe:LiNbO3) is an attractive photorefractive material, due to high photorefractive sensitivity, high electro-optic coefficients and diffraction efficiency, chemomechanical properties. Fe:LiNbO3 crystals are grown by Czochralsky method and available in large size. Wide range of available dopants and levels enable to adjust material properties for particular applications. What is more, Fe:LiNbO3 crystals feature ease to handle, low cost, therefore suitable for volume production.
Main features
High electro-optic coefficient (r41=5 pm/V)
High phase conjugation efficiency
Available in large size elements or wafers up to 3"
Customization available upon request
Application examples
Spatial light modulators
Optical switches
Holographic recording
Optical waveguides
Main properties
Chemical formula: Fe:LiNbO3
Crystal structure: Trigonal, 3m
Density: 4,64 g/cm3
Mohs hardness: 5
Transparency range : 0,35 - 5,5 μm
Refractive indices @0,63 μm: ne = 2,20 no = 2,29
Electro-optic coefficients: r22 = 6,8 pm/V r31 = 10 pm/V r33 = 32 pm/V
Dielectric constants: e11 = 85 e33 = 30
Manufacturing accuracy of Optical LiNbO3 Crystal or according to customer's need
| Growth Method | Czochralski |
| Crystal Structure | Trigonal |
| Lattice Constant | a=b=5.148Å c=13.863 Å |
| Melting Point | 1250ºC |
| Curie Temperature | 1140ºC |
| Density | 4.64(g/cm3) |
| Mohs Hardness | 5(mohs) |
| Transmission Wavelength | 0.4-2.9μm |
| Refractive Index | no=2.286 ne=2.203 (632.8nm) |
| Intensity of Spontaneous Polarization | 50×10C/cm |
| Nonlinear Coefficient | d22 = 2.1 d31 = - 4.5 d33 = -0.27 (pmv-1) |
| Electro-optic Coefficient | γ13=8.6,γ22=3.4,γ33=30.8,γ51=28.0,(pmv-1) |
| Optical Damage Threshold | 250 MW/cm2 @ 1064 nm, 10nsec. |
| Transmittance | 370~5000nm >68% |
| (632.8nm) | |
| Thermal Expansion | //a, 2.0 x 10-6 / K |
| //c, 16.7 x 10-6 / K | |
| Absorption Loss | @ 1064 nm < 0.1 %/cm |
| Material | Domestic or foreign materials are selected based on clients' requests |
| Dimension | Equal to or less than Ø4″ |
| Dimensional Tolerance | Z axis: ±0.3mm X axis, Y axis: ±0.1mm |
| Surface Quality | 10-5 |
| Chamfer | Less than 0.5mm, 45 º±5 º |
| Crystal Orientation Accuracy | Z axis: 5′ X, Y axis:<10′ |
| Flatness | v8 (632.8nm) |
| Parallelism | <10′ |
| Coating | R<0.2%(1064nm) |
| Wavefront Distortion | <N4(633nm) |
| Extinction Ratio | >400:1(633nm)φ6mm beam |
| Package | Class 100 clean bag, Class 1000 super clean room |
Application field
Factory:
Tianjin Tengteng Optoelectronic Technology Co., Ltd. was established in 1995, focused on production, research and sales of precision optics. We have professional engineers to research and develop, and design all kinds of lens.
Other Lenses Handle
Optical Lens DesignLens assembly and debugging
Packaging& Shipping
Package detail:
Inside Packing: Special protective packing for optical products
Outside Packing: Carton
Packing can be made according to customer's need
Payment Term:
T/T,Western Union,Paypal,L/C
Customer Question & Answer
1. Are you a manufacturer or trader? Can I visit your factory or office? How to see your factory on line?
We are a manufacturer in Tianjin, China.You are welcome to visit our factories and offices at any time.We have a video to show you our factory in detail.
2.What's your minimum order quantity?1 unit.
3.What's your payment term?
T/T,Letter of Credit, Western Union etc.
