Optical Design Visible Volume Phase Holographic Transmission Gratings for Spectroscopy

D iffraction gratings
Diffraction gratings are used to separate light into component wavelengths, are offered in both transmission and reflective varieties for use from the UV to the MIR. Our diffraction grating selection includes ruled (blazed), volume phase holographic, holographic, echelle, and a grating modulator.

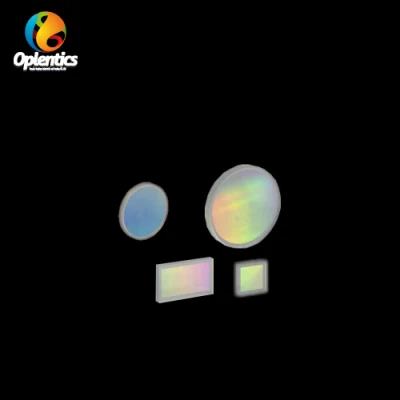

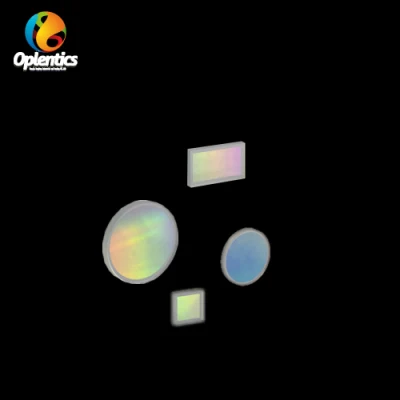

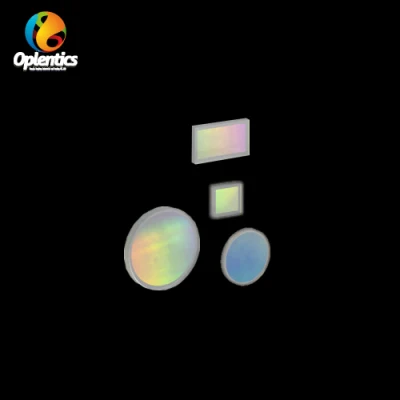

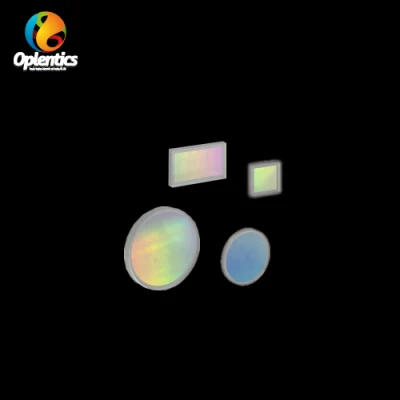

Visible Volume Phase Holographic Transmission Gratings
  • 532 nm or 600 nm Design Wavelength
  • High First-Order Diffraction Efficiency
  • Low Polarization Dependence
  • Resistant to Fingerprint and Aerosol Damage
Visible Volume Phase Holographic (VPH) Transmission Gratings are ideal for applications that require low polarization-dependent loss or high diffraction efficiency. Gratings with a 532 nm design wavelength (DWL) have a spatial frequency of 1800 lines/mm, and gratings with a 600 nm DWL have a spatial frequency of 600 lines/mm.


Features

  • Design Wavelength (DWL) and Spatial Frequency Options:
    • 532 nm: 1800 Lines/mm
    • 600 nm: 600 Lines/mm
  • Ø1", Ø2", and 50.0 mm x 30.0 mm Gratings Available
  • High First-Order Diffraction Peak Efficiency (See Tables Below)
  • Low Polarization-Dependent Loss
  • Uniform Performance Over Broad Bandwidths (See Diffraction Efficiency Graphs Below)
  • Extremely Low Scatter Between Orders (No Ghosting)
  • Dichromated Gelatin (DCG) Film Between Two Glass Substrates
  • Ideal for Spectroscopy
Optical Design Visible Volume Phase Holographic Transmission Gratings for Spectroscopy
Common Specifications
Grating Film Dichromated Gelatin
Cover-Plate Substrate N-BK7a or Equivalent
Thickness Tolerance ±0.2 mm
Spatial Frequency Tolerance ±2 lines/mm
AOI Tolerance ±1°
Transmitted Wavefront <λ/4 at 632.8 nm
Error (RMS)
Surface Quality 40-20 Scratch-Dig

Selection Guide
Transmission Gratings
Ruled UV
Visible
Near IR
Volume Phase Visible
Holographic Near IR
Reflective Gratings
Ruled UV
Visible
Near IR
Mid IR
