Product Description

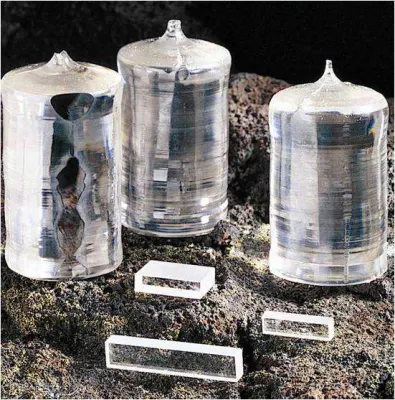

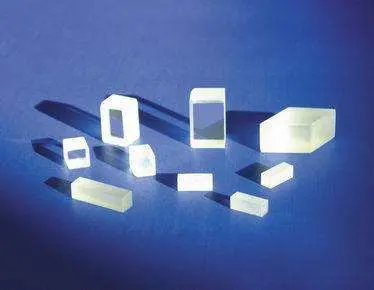

Lithium Niobium crystal (LN)LiNbO3 lens
Lithium niobium crystal (LN)LiNbO3 lens is widely used in SAW filter, optical waveguide, photoelectricity modulator, frequency multiplication transducer and information storage as a functional crystal with excellent physical feature of anti high temperature and anti canker. It has stable mechanical performance, and will appear different special feature after being doped differently.
| Diameter | 5mm - 152.40mm or customization |
| Dimension tolerance | +/-0.1mm or +/-0.01mm |
| Thickness | Customized |
| Crystal Structure | Trigonal, point group 3m |
| Lattice Parameters | a=b=5.148 , c=13.863 |
| Density | 4.64 g/cm3 |
| Melting Point | 1250 degrees |
| Curie Point | 1142+/- degrees |
| Mohs Hardness | 55 |
| Dielectric Constant | e11/e0 = 85; e33/e0 = 29.5 |
| Thermal Conductivity | 38 W/m egrees at 25 egrees |
| Thermal Expansion Coefficient | a1=a2 =2x10-6 egrees, a3=2.2x10-6/ degrees at 25degrees |
| Piezoelectric Strain Constant | CE11 = 2.04 x 1011 N/m2, CE33 = 2.46 x 1011 N/m2 |
| Elastic Stiffness Constant | CE11 = 2.04 x 1011 N/m2, CE33 = 2.46 x 1011 N/m2 |
| Grade | Optical grade or Saw grade |

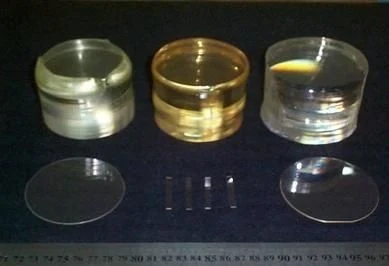

Related LiNbO3 Optical Wafer we can supply
optical grade quality wafers
Saw grade quality wafers
MgO doped LiNbO3
Fe doped LiNbO3
Innovation point: Through the growth equipment modification,we create simulation of crystal growth system and can design crystal shape. The computer chip control the changing of crystal shape according to crystal growth status, through the processing of precision sensor signals. We self-design a set of graded composite temperature structure. With the help of it, the temperature gradient in crystals, melt and the solid liquid interface reach the good state for optical crystal growth.
