Model NO.
SWPA0502R6110L
Operating Frequency
0.5-2 GHz
RF Connectors Input/Output
SMA-F
Saturated Power Output
3-7 dBm
Input Power Range
-61 dBm~+10 dBm
Impedance
50 Ohms
Transport Package
Carton
Specification
100*25*18 mm(Max)
Trademark
SWT
Origin
China
Production Capacity
2000 / 3 Months

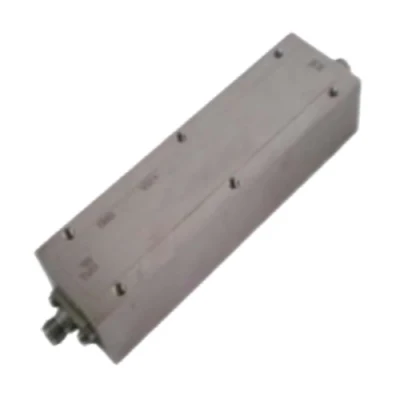

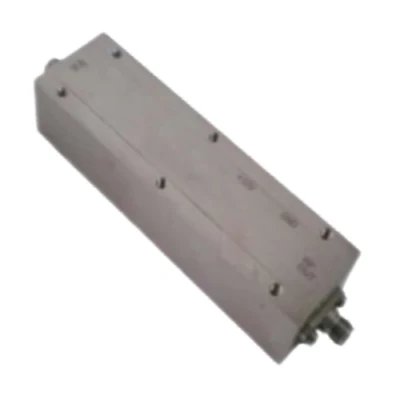

Product Description
P Band L Band 0.5-2GHz 3 dBm Saturated Power output Wide Band Limiting Amplifier
ELECTRICAL SPECIFICATIONS@25˚C
ENVIRONMENTAL RATINGS
MECHANICAL SPECIFICATIONS
TEST DATA
Q5: Delivery Date of the sample by DHL/FedEx
ELECTRICAL SPECIFICATIONS@25˚C
| Parameter | Min | Typical | Max | Units |
| Frequency Range | 0.5 | 2 | GHz | |
| Input power Range | -61 | +10 | dBm | |
| Noise Figure | 4.0 | dB | ||
| Saturated Power output | 3 | 7 | dBm | |
| output Power Flatness | ±1.5 | dB | ||
| harmonic output | -10 | dBc | ||
| VSWR Input/output | 2:1 | Ratio | ||
| Pulse response Overshoot | 0.5 | dB | ||
| Pulse response Recovery time | 50 | ns | ||
| Pulse response Settling time | 50 | ns | ||
| Pulse response Rise time | 20 | ns | ||
| DC Power Supply | 12 | Volt | ||
| Current | 550 | mA |
ENVIRONMENTAL RATINGS
| Parameter | Min | Typical | Max | Units |
| Max Input power | dBm | |||
| Operating Temperature | -40 | +85 | ºC | |
| Non-operating Temperature | -55 | 125 | ºC | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone |

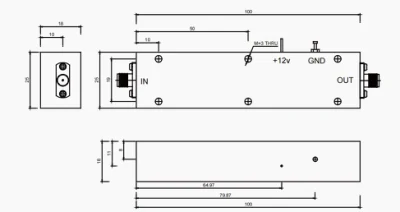

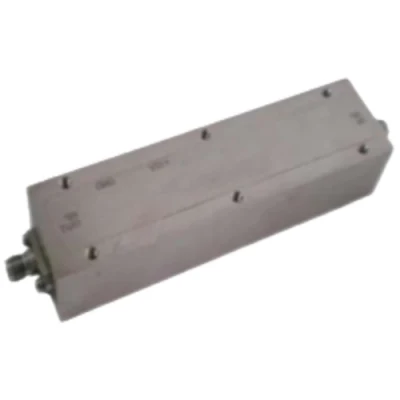

MECHANICAL SPECIFICATIONS
| Parameter | Value | Limits | Units |
| Dimensions | 100*25*18 | Max | Millimeter |
| Weight | 80 | Max | gram |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| Impedance | 50 | ohms |
TEST DATA
| Frequency range(GHZ) | GAN(dB) | Output Power(dBm) | Harmonic (dBc) | Input VSWR Max | Output VSWR Max | DC Power Supply @+12V |
| 0.52 | 70.9 | 8.6 | 9 | 1.51 | 1.48 | 158 |
