Product Description
Working principle

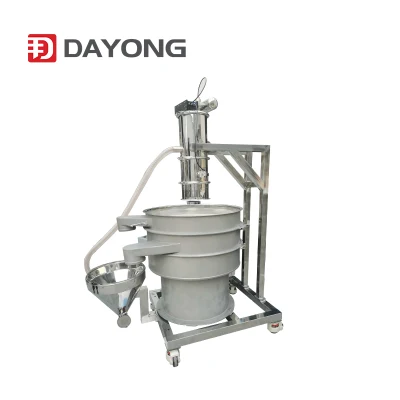

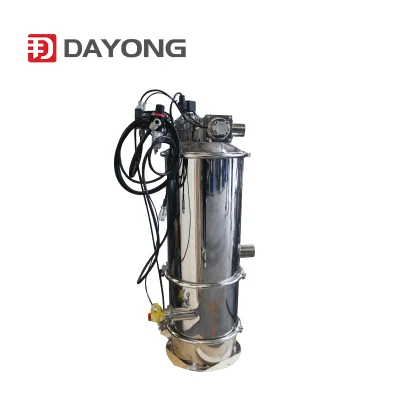

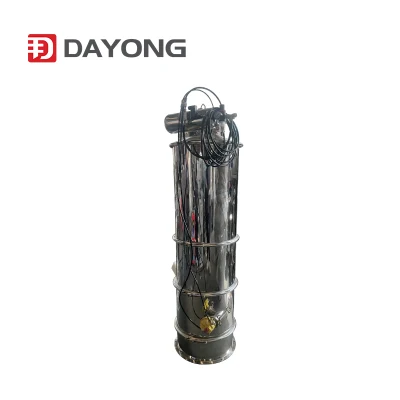

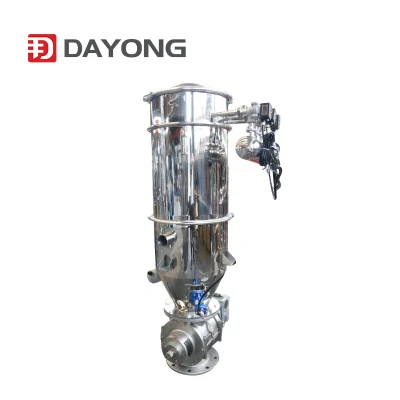

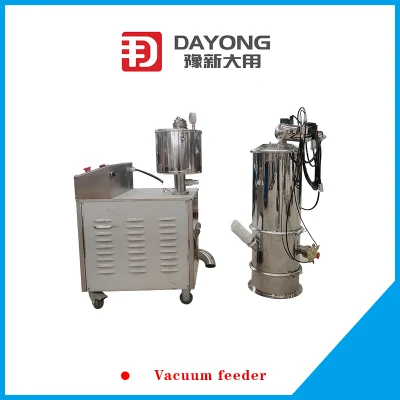

The vacuum feeding machine manufactured by our company is a newly developed product which is the most advanced, ideal vacuum conveying equipment for conveying powder material, granular material, mixture of powder and granular material . It can not only automatically convey a variety of materials to the mixing machine, packing machine, injection molding machine, and grinder but also directly deliver the mixed materials to the mixing machine such as v-type mixing machine, two dimensions mixer and three dimensions mixer. It can reduce the labor intensity and prevent the dust overspill. Pharmaceutical factories and food factories can use it to promote clean production and pass the GMP certification.
The vacuum feeding machine consists of vacuum pump(oil-free or water-free, ), vacuum hopper, filter(polyester coated, pe, 316L stainless steel, titanium),compressed air backflushing device, pneumatic feeding door device, automatic material level control device, stainless steel suction nozzle, conveying hose. The whole equipment is well designed and manufactured.
Solve the problem thoroughly about the separating layer of material.
The sintered-metal filter is Japanese original.
It can be removed the material static electricity.
It is airtight without crossed contamination.
It is made in good quality stainless steel(304 and 316L).
It is made in non-toxic and corrosion resistant material.
Filter is easy cleaned.
It is controlled intelligently and automatically.
It is easy dismantled with building blocks structure.
It is easy set up and small volume, the weight is light
It is no noise and screening
It is economical and practical the cost is lower.
Specification
| Description | Model | Power(kw) | Capacity (kg/h) |
| Electric vacuum conveyor | ZKS-1 | 1.5 | 400 |
| ZKS-2 | 2.2 | 600 | |
| ZKS-3 | 3 | 1200 | |
| ZKS-4 | 5.5 | 2500 | |
| ZKS-5 | 5.5 | 3200 | |
| ZKS-6 | 5.5 | 3200 | |
| ZKS-7 | 7.5 | 6000 | |
| ZKS-10-6 | 7.5 | 6000 | |
| ZKS-20-5 | 11 | 5000 |
Xinxiang Dayong Vibration Equipment Co., Ltd., is a technological enterprise created by a professional team. Dayong makes every effort to produce multi functional machines with modern design, and high practicability and reliability, there is great innovation in our products, therefore Dayong wins a wide favors from customers. Dayong offers the widest range of sieving and filtration equipment, mainly produces slurry vibrating sieve, drum vibrating sieve, flat vibrating sieve, high-frequency glaze vibrating sieve, dry-powder vibrating sieve, etc., with our extraordinary confidence, stable high quality and client-ease service.
The proper selection of the industrial vaccum conveyor system depends on the material, conveying distance, output required, charaterristics of the material etc:
1. Conveying product : _____
2. Viscosity:_____%
3. Capacity:________kg/ hour
4. Conveying length:_______
5. Conveying heigh:______
6. Voltage:______V, Frequency:______HZ, ______ phase
7. Intermittent or continuous feeding?
