Product Description

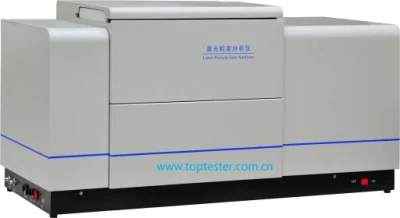

PTT-2308B Intelligent Wet and Dry Laser Particle Size Analyzer
PTT-2308B intelligent full automatic wet&dry laser particle size analyzer adopt full MIE scattering principle, measure size is from 0.01 micron to 1200 micron (dry 0.1-1200 micron), Which offer reliable and repeatable particle size analysis for a diverse range of applications.It use dual-beam& multiple spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, It's the prior choice for industrial production quality control departments and research institutions.
| Model Name | PTT-2308B | |
| Standard | ISO13320-1:2009,GB/T19007-2016,Q/0100JWN001-2013 Compliance with 21 CFR Part 11 | |
| Principle | Laser diffraction principle | |
| Analysis | Mie and Fraunhofer scattering | |
| Detector Arrangement | Log-spaced array, test angle from 0.015 degree to 145 degree | |
| Measuring Range | Wet:0.01μm-2000 μm Dry: 0.1μm-2000μm | |
| Silicon Photodetectors | Wet:127 pcs Dry:100 pcs | |
| Accuracy error | Wet<1% Dry<1% (CRM D50) | |
| Repeatability error | Wet<1% Dry<1% (CRM D50) | |
| Light source | He-Ne laser P>3.0 MW (λ= 632.8nm) Auxiliary green solid semiconductor laser (λ= 405 nm) P>2.0MW (available) | |
| Optical path | Converging light Fourier transform optical path | |
| Effective focal length | 500mm | |
| Laser Safety | Class 1 | |
| Wet dispersion | Ultrasonic | Frequency:40KHz Power:60W, Time: ≥1S |
| Stir | Revolutions Speed: 0-3000RPM (Adjustable) | |
| Circulate | Rated Flow:30L/min Rated Power:70W | |
| Anti-overflow sensor | Made in SST , UK | |
| Sample tank | Volume:1000mL | |
| Micro- Sample cuvette | Volume: 10mL ( Available) | |
| Dry dispersion | Dry-turbulence dispersion patent technology, normal shock wave shear technique | |
| Feeding Speed | Adjustable (Variable speed knob) | |
| Operation Mode | Full automatic / manual control, freely choose | |
| Dispersion medium | Compressed Air, pressure: 0 to 6 bar | |
| Optical bench alignment system | Full automatic, precision is up to 0.2um | |
| Full Test Speed per time | Wet: <2 Min Dry : <1min Inverval time per test result :500ms | |
| Outer dimension | L104cm×W44cm×H54cm | |
| Net Weight | 70Kg | |
