Basic Info.
Model NO.
PTT-2309A
HS Code
9031809090
Production Capacity
120 Sets/Month
Product Description

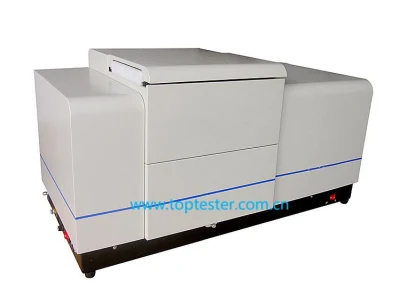

Intelligent Wet and Dry Laser Particle Size Analyzer
PTT-2309A
PTT-2309A
PTT-2309A intelligent full automatic wet&dry laser particle size analyzer adopt laser diffraction theory(Mie and Fraunhofer diffraction), measure size is from 0.01μm to 2000μm(dry 0.1μm-2000μm), Which offer reliable and repeatable particle size analysis for a diverse range of applications.It use dual-beam& multiple spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, It's the prior choice for industrial production quality control departments and research institutions.
| Model Name | PTT-2309A | |
| Standard | ISO13320-1:2009,GB/T19007-2016,Q/0100JWN001-2013 Compliance with 21 CFR Part 11 | |
| Principle | Laser diffraction principle | |
| Analysis | Mie and Fraunhofer scattering | |
| Detector Arrangement | Log-spaced array, test angle from 0.015 degree to 145 degree | |
| Measuring Range | Wet:0.01μm-2000 μm Dry: 0.1μm-2000μm | |
| Silicon Photodetectors | Wet:127 pcs Dry:100 pcs | |
| Accuracy error | Wet<1% Dry<1% (CRM D50) | |
| Repeatability error | Wet<1% Dry<1% (CRM D50) | |
| Light source | High performance semiconductor red laser (λ=639nm ) P>3.0MW Auxiliary green solid semiconductor laser (λ= 405 nm) P>2.0MW (available) | |
| Optical path | Converging light Fourier transform optical path | |
| Effective focal length | 500mm | |
| Laser Safety | Class 1 | |
| Wet dispersion | Ultrasonic | Frequency:40KHz Power:60W, Time: ≥1S |
| Stir | Revolutions Speed: 0-3000RPM (Adjustable) | |
| Circulate | Rated Flow:30L/min Rated Power:70W | |
| Water level sensor (UK | Prevent water overflow and effectively protect the instrument | |
| Sample tank | Volume:1000mL | |
| Micro- Sample cuvette | Volume: 10mL ( Available) | |
| Dry dispersion | Dry-turbulence dispersion patent technology, normal shock wave shear technique | |
| Feeding Speed | Adjustable (Variable speed knob) | |
| Operation Mode | Full automatic / manual control, freely choose | |
| Dispersion medium | Compressed Air, pressure: 0 to 6 bar | |
| Optical bench alignment system | Full automatic, precision is up to 0.2um | |
| Full Test Speed per time | Wet: <2 Min Dry : <1min Inverval time per test result :500ms | |
| Outer dimension | L104cm×W44cm×H54cm | |
| Net Weight | 70Kg | |
