Product Description
The SWTEMC150 wideband amplifier series covers the frequency range from 9 kHz to 6 GHz, and is compact and lightweight, suitable for amplitude, frequency, phase and pulse modulation, and the
input and output and sampling ports can be configured with rich switching options to easily achieve a variety of different application.
The SWTEMC150 wideband amplifier supports applications in four microwave frequency bands, 9 kHz to 250 MHz, 80 MHz to 1.0 GHz, 0.8 GHz to 3.0 GHz and 2.5 GHz to 6.0 GHz. Therefore, it can meet many different application requirements, including EMS testing of different standards, up to 6GHz. In the industrial field, whether it is quality assurance or R&D and production of components, the BBA150 broadband amplifier is very suitable for verification testing. In addition, it can also be applied to the fields of scientific research, engineering physics and communication.

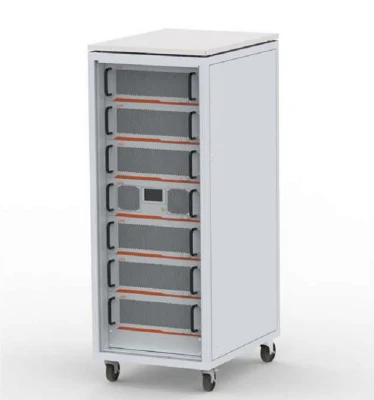

The SWTEMC150 Broadband Amplifier adopts a modular, lightweight design and is specifically optimized for different frequency bands. The amplifier is available in two versions, the low-power amplifier is available in a standard 19-inch rack size, 4U high, and can be used in a desktop model or rack-mounted, while the high-power amplifier must be rack-mounted. The broadband amplifier can be controlled manually using the display and buttons, or automatically via the remote control interface or web browser.
The modular concept is a prerequisite for subsequent upgrades in power and frequency range. The concept of repairing and supplying spare parts enhances customer trust and confidence.
Main Features:
1. Four frequency bands, 9 kHz to 250 MHz, 80 MHz to 1.0 GHz, 0.8 GHz to 3.0 GHz, 2.5 GHz to 6.0 GHz
2. Output power, 15 W to 3000 W
3. 100% mismatch tolerance
4. Suitable for amplitude, frequency, phase and pulse modulation
5. Three-year warranty period, worldwide supply of spare parts
6. Sophisticated RF design
7. Compact structure and light weight
| New Model | Key Tech Specification | ||
| Frequency Band | Output Power | ||
| 1 | SWTPA-9K25025W | 9kHz-250MHz | 2500W |
| 2 | SWTPA-80M1G30W | 80MHz-1GHz | 3000W |
| 3 | SWTPA-8M3G40W | 0.8GHz-3GHz | 400W |
| 4 | SWTPA-250M6G20W | 2.5GHz-6GHz | 200W |
Depends on customers' requirement, this PA module can work for 4KHZ-100GHZ, with aluminum case, it powers up via a pre-amplifier then start work.
Equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation.
It can work not just singly, but also can be a part to consist a more powerful unit which maximum power can reach to 20M Watts.
More function and parameters are available to customized according to actual requirement.
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.
Default packaging. Normally carton, the packaging may be different if there is different production batch.
Port of Delivery: Shanghai or other chinese port
