Basic Info.
Model NO.
SWTBSF
Model Number
Swtbsf
Application
2g/3G/4G LTE/GPS/Lojack
Customized
Yes
Transport Package
Standard Packing
Specification
customized
Trademark
OEM
Origin
Nanjing, China
Product Description

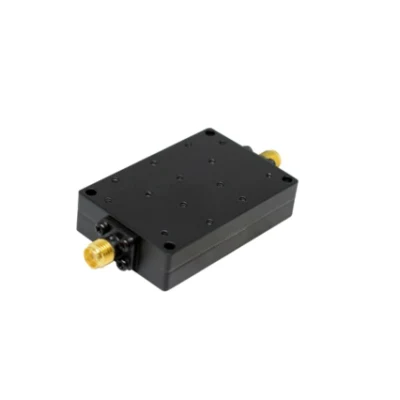

RF Passive Device Band Stop Filter Customized Dual Band Stop Filter N Female Type
| Frequency range : 700 MHz- 5800MHz To be customized |
Electrical Specification | |
| Description | Notch Filter |
| F0 | 2535MHz |
| Notch Depth | 30dB min: 2532.5-2537.5MHz |
| Passband | DC-2524.5MHz , 2545.5-3500MHz |
| Insertion Loss | 3.0dB max |
| V.S.W.R | 2.0:1 max |
| Impedance | 50 Ohm |
| Power Handling | 20W |
| Connector Type | SMA |
Environmental Specification | |
| Operating Temperature | 0~+30ºC |
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.
Q&A:
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
| Sample | 20 business days |
| ≤50 pcs | 60 business days |
| >50 pcs | 90 business days |
| >200 pcs | Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
| USA/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 5-7 days |
| African | 3-7 days |
