S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier

Solid State High Power Amplifier 50W 2-6GHz 50ohms Impedance, perfect for S Band C Band applications. We are a factory specializing in high-quality RF amplifiers." SEO Description: Explore our factory's high-quality Solid State High Power Amplifier with 50W output power, 2-6GHz frequency range, and 50ohms impedance for S Band and C Band applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SWPA020060G4047
Operating Frequency
2-6GHz
Output Power
50 Watt
RF Connectors Input
SMA-F
RF Connectors Output
N-F
Impedance
50 Ohms
Power Gain
40 dB
Transport Package
Carton
Specification
280*168*80 mm
Trademark
SWT
Origin
China
Production Capacity
3000 / 3 Months

Product Description

S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier

S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier

ELECTRICAL SPECIFICATIONS@25˚C
Parameter Min Typical Max Units
Frequency Range 2   6 GHz
Power Gain 40     dB
Power Flatness   ±3   dB
Output Power 50     Watt
Spurious   -60   dBc
Harmonics       dBc
VSWR       Ratio
DC Power Supply   +28   Volt
Current   7   A
Note:Air forced cool.

ENVIRONMENTAL RATINGS
Parameter Min Typical Max Units
Max Input power       dBm
Operating Temperature -20   +70 ºC
Non-operating Temperature -45   +85 ºC
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD

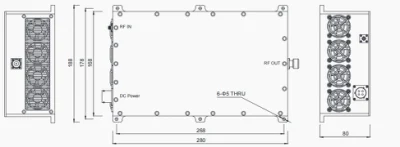

MECHANICAL SPECIFICATIONS
Parameter Value Limits Units
Dimensions 280*168*80   Milimeter
Weight 6   Kg
RF Connectors Input SMA-F
RF Connectors output N-F
Impedance 50   ohms
  S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier

S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier


S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier

S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier


Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave  communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.


S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier
S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier
S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier
S Band C Band 2-6GHz 50W Output Power 50ohms Impedance Solid State High Power Amplifier


Q&A:

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.


Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.



Q4.Shipment Date

Sample 20 business days
≤50 pcs 60  business days
>50 pcs 90 business  days
>200 pcs Negotiate

Q5: Delivery Date of the sample by DHL/FedEx
USA/Canada/Europe/Asia 3-5 days
Middle East/Latin American 5-7 days
African 3-7 days
