Softel CATV 870MHz Adjacent Analog Saw Filter Modulator

Shop the Softel CATV 870MHz Adjacent Analog Saw Filter Modulator at our factory for high-quality performance and reliable signal transmission.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
AH805B
Channel
Single
Frequency List
PAL B/G, NTSC, PAL D/K
Product Name
CATV 870MHz Adjacent Analog Saw Filter Modulator
Lead Time
Around 1 Week
Output Level
113dbv
Type
Fixed Type
Transport Package
Standard Export Package
Specification
55x37x44cm
Trademark
SOFTEL
Origin
Zhejiang, China
HS Code
8517623400
Production Capacity
5000PCS Per Month

Product Description

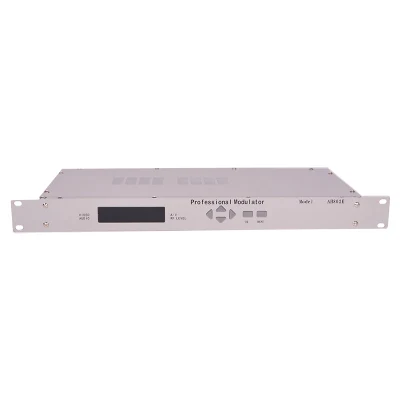

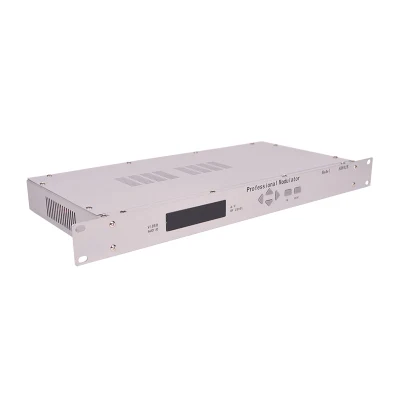

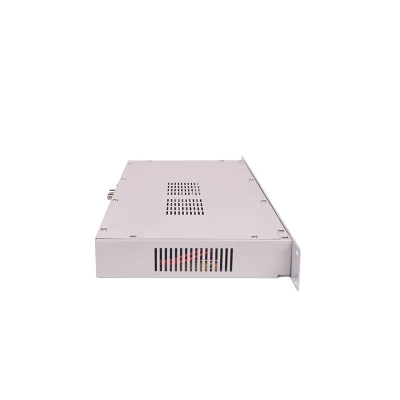

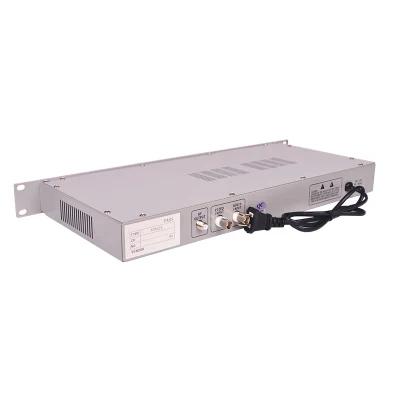

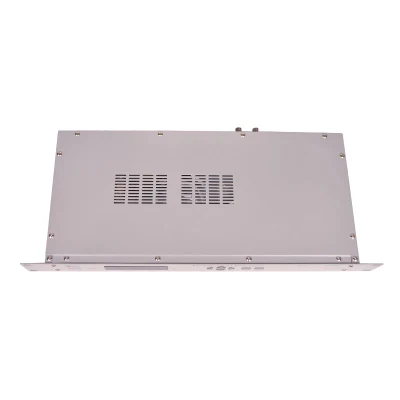

Softel catv 870mhz adjacent analog saw filter modulator

Softel CATV 870MHz Adjacent Analog Saw Filter Modulator
Softel CATV 870MHz Adjacent Analog Saw Filter Modulator
Softel CATV 870MHz Adjacent Analog Saw Filter Modulator

Feature

1.IF process with excllent performance
2.SAW filtering for maintenance free adjacent channel configuration
3.Phase lock loop frequency control prevents frequency drift
4.LED Display.Front panel control for easy installment
5.Excellent video and audio linearity for superior picture quality
6.Standard 19" housing for standard rack
7.PAL,NTSC and SECAM optional
8.Excellent value for your investment dollar

Specification




RF

Output Frequency

45-870MHz

Frequency Accuracy

±5KHz

Output Level

113dBmV

Outband Suppression

³60dB

Sideband Suppression

³60dB

Output Impedance

75W

A/V Ratio

-10dB ~ -20dB







Video

Input Level

0.6 ~ 1.5Vp-p

Input Impedance

75W

Input Return Loss

30dB min

K Vaule

4% max( 2T pulse)

SNR

50dB(Non-weight)

Delay Response

40nsec

Flatness

±1dB( 25Hz ~ 5.8MHz)

Differential Gain

±4%(Modulation 87.5%)

Differential Phase

±4°





Aduio

Input Level

-10 ~ 10 dBm

Input Impedance

10KW min

Flatness

±1dB max(40Hz ~ 15KHz)

Harmonic Distortion

<0.5%,50Hz ~ 15kHz

SNR

-60dB

Power Supply

AC Input

110-220V


Softel CATV 870MHz Adjacent Analog Saw Filter Modulator
FAQ

1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.

5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
