Basic Info.
Model NO.
SSG3021X
Type
RF Signal Generator
Channel
Contact Us
Display
Capacitive Touch Screen
Optional Configuration
Gpib
Amplitude Accuracy
0.7 dB Typical Value
Interface
USB-Host, USB Device (Usbtmc), LAN (Vxi-11,Socket,
Screen Size
5 Inches
Frequency Resolution
0.01 Hz
Transport Package
Moisture-Proof and Anti-Collision
Specification
Contact Us
Trademark
Siglent
Origin
China
Production Capacity
5000 / Quarter
Packaging & Delivery
Package Size
50.00cm * 30.00cm * 20.00cm
Package Gross Weight
10.000kg
Product Description

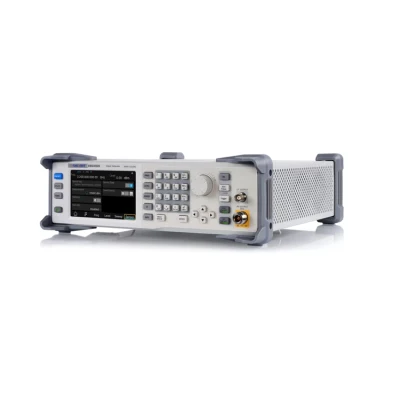

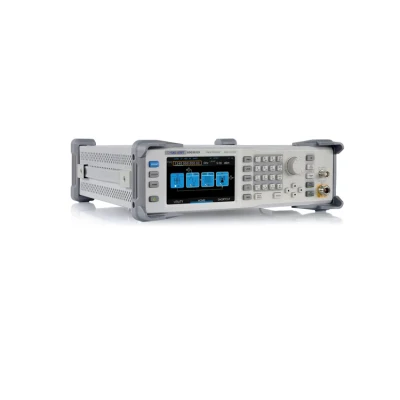

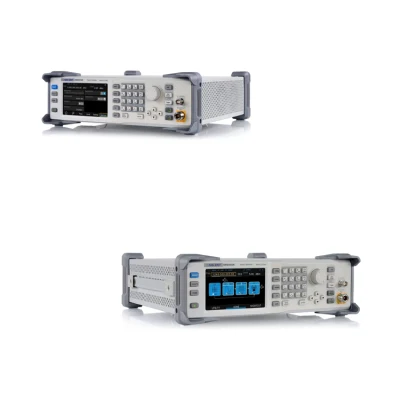

SSG3000X Series of Signal Generators
Product Overview
SIGLENT'S SSG3000X RF Signal Generators have a frequency range of 9 kHz to 2.1 GHz/3.2 GHz. They provide normal analog modulation such as AM, FM, and PM. They also provide pulse modulation and pulse train generator. In addition, when used with baseband generator such as the SDG6000X, they can generate IQ modulated signals. With their high accuracy and pure outputs, SSG3000X signal genrators are the right choice for R&D, education, and manufacturing applications.
Key Features
- Frequency up to 2.1 GHz/3.2 GHz
- Maximum level up to +20 dBm (typ.)
- Level output from -110 dBm to +13 dBm
- Level accuracy ≤0.7 dB (typ.)
- Standard AM & FM & PM & pulse modulation
- Pulse train Generator (option)
Specification parameters
| Model | Frequency Range | AmplitudeResolution | Phase Noise | External I/Q Modulation |
| SSG3021X | 9 kHz~2.1 GHz | 0.01 dB | -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) | NO |
| SSG3032X | 9 kHz~3.2 GHz | 0.01 dB | -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) | NO |
| SSG3021X-IQE | 9 kHz~2.1 GHz | 0.01 dB | -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) | YES |
| SSG3032X-IQE | 9 kHz~3.2 GHz | 0.01 dB | -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) | YES |
- Frequency up to 2.1 GHz/3.2 GHz
- 0.01 Hz frequency setting resolution
- Level output from -110 dBm to +13 dBm
- Maximum level up to +20 dBm (typ.)
- Phase Noise : -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
- Level accuracy ≤0.7 dB (typ.)
- Provides AM, FM, &PM analog modulation with internal, external or Int+Ext source
- Pulse modulation, on/off ratio ≥70 dBc
- Pulse train Generator (option)
- External IQ modulation with SDG6000X as the baseband IQ signal
- USB-power meter measurement
- 5 inch TFT capacitive touch screen, Mouse and keyboard supported
- Web Browser Remote Control on PC and mobile Terminals
- Standard interface include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
