Basic Info.
Model NO.
SWT-GKTS-FS16/4-127-0.8/2.7-NK
Insertion Loss
≤11 dB
Switch Speed
6ms
Connector Type
N(K)
Transport Package
Carton or as Per Customer Requirement
Specification
596*483*132.5 mm
Trademark
SWT
Origin
China
Production Capacity
1000 / Month
Product Description

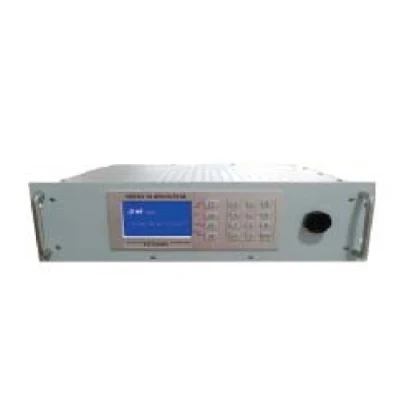

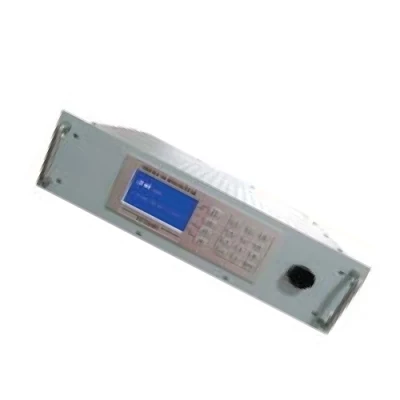

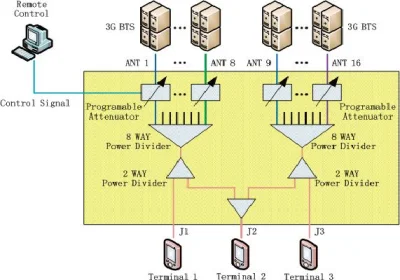

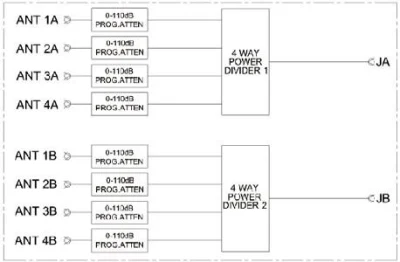

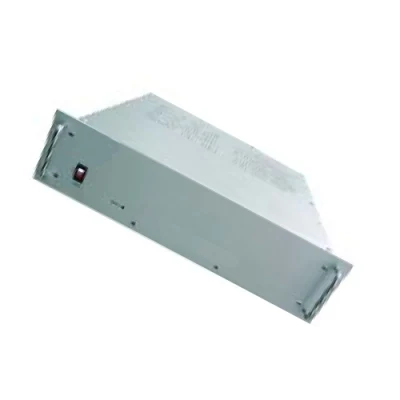

0.8-2.7GHz 33dBm RF Input Power N(K) Connector M In N Out Microwave Test Subsystem
SPECIFICATIONS
| Frequency Range(GHz) | Attenuation Range(dB) | Attenuation Accuracy | VSWR | Insertion Loss(dB) | RF Input Power(dBm) | Switch Speed | Connector Type | Dimension (mm) | Weight (kg) |
| 0.8-2.7 | 0-127 in 1dB steps | ±0.5dB(≤10dB) ±1.0dB(10~31dB)±1.5dB(32~63dB) ±2.5%dB(64~127dB) | ≤1.5 | ≤11 | 33 | 6ms | N(K) | 596×483×132.5 | 15 |
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.
Q&A:
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
| Sample | 20 business days |
| ≤50 pcs | 60 business days |
| >50 pcs | 90 business days |
| >200 pcs | Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
| USA/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 5-7 days |
| African | 3-7 days |
