Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test

Buy Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test from our factory. High-quality, reliable transformer testing equipment.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Model NO.
TH2832XB
Display
4.3 Inch TFT LCD 272*480
Comparator Function
10-Bin Sorting, Pass/Fail Indicator, Count Functio
Transport Package
Carton
Specification
46x37x26cm
Trademark
Tonghui
Origin
China
HS Code
9030339000
Production Capacity
2000 Sets Per Month

Product Description

Product Description

https://ckt2017.en.made-in-china.com/contact-info.html

Brief Introduction

The new window interface design and operation style are perfectly presented on the 4.3-inch TFT. The transformer test system provides a test frequency of 20Hz-200kHz, which meets customer's measurement requirements for switching transformers and network transformers. The transformer scan test covers various low voltage parameters of the transformer. It also provides the record and view of the relay usage times of the scan fixture, so that customers can fully grasp the relay usage status and replace it in time.

Technical Parameter
Model TH2832XA TH2832XB TH2832XC
Number of Test Pin 24 24 12
Test Signal Frequency 20Hz-200kHz, 15025 points in total.
Display 4.3 inch TFT LCD 272*480
Transformer Test Parameter Turn ratio, turs, phase, L, C, Lk, Q, ACR, DCR, Balance, Pin short.
LCR Test Parameter |Z|,Y|, C, L, X, B, R, G, D, Q, θ, DCR, Turn-ratio, Phase, Lk. No LCR function
Basic Accuracy LCRZ 0.1% ------
DCR, Turn ratio 0.5%
Signal Source Output Impedance 30Ω, 100Ω selectable.
Test Speed (≥10 kHz) Fast: 40ms, Med: 125ms, Slow: 370ms.
AC Signal Level 10mV - 2Vrms, 100μA - 20mArms.
DC Bias Voltage Source 0V - ± 5V, 0mA -±50mA.
 Comparator Function 10-bin sorting, PASS/FAIL indicator, count function
Memory 100 groups of LCRZ setting file,100 groups of transformer scan set file, 10 groups of gif file.

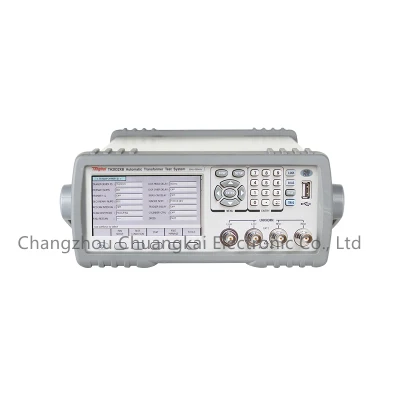

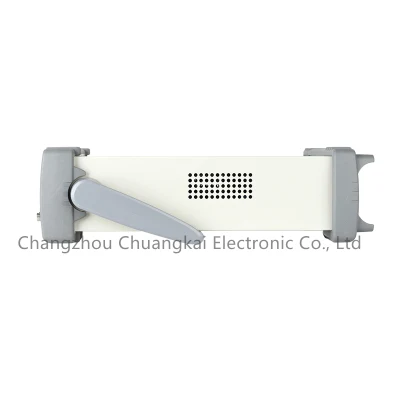

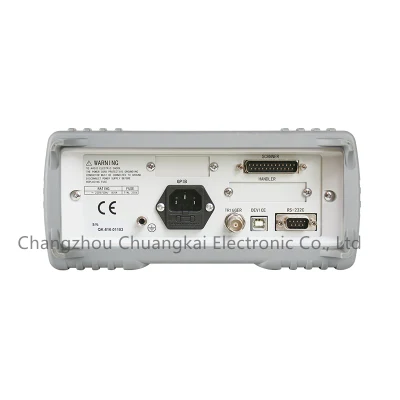

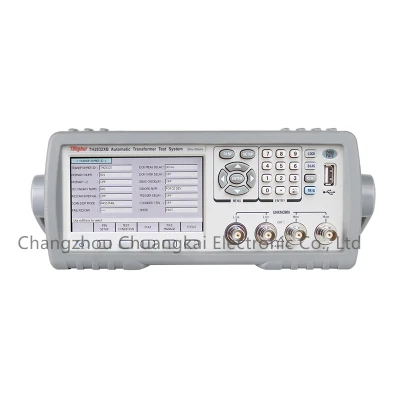

Detailed Photos

Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test

Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Packaging & Shipping

https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html


Tonghui Th2832xb 4.3 Inch TFT LCD 272*480 Automatic Transformer Test
Company Profile

https://ckt2017.en.made-in-china.com/product-list-1.html


Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.
