Tonghui Th2851-130 Impedance Analyzer 10.1 Inches TFT LCD Display

Introducing the Tonghui Th2851-130 Impedance Analyzer with a 10.1 Inches TFT LCD Display. Shop now for factory-direct pricing and high-quality performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Model NO.
TH2851-130
Warranty
With Warranty
Power Source
DC 100V-300V
Weight
〉10Kg
Installation
Direct Connected
Customized
Customized
Product Name
Tonghui Th2851-130 Impedance Analyzer 10.1 Inches
Graphic Scan Points
2-1601
Interface
RS232c, USB Host, USB Device, LAN, Gpib, Handler,
Equivalent Circuit Analysis
3-Element Model: 4, 4-Element Model: 3
Sorting
10 Levels of Sorting in Lcr Mode; Each Curve in S
Test Terminal Configuration
Four Terminal Pair
Frequency
10Hz-130MHz
Graphic Scan
Parameter Frequency, Acv, Aci, Dcv, Dci
Transport Package
Carton
Specification
55x54x33cm
Trademark
Tonghui
Origin
China
HS Code
9030339000
Production Capacity
2000 Sets Per Month

Product Description

Product Description



https://ckt2017.en.made-in-china.com/contact-info.html
Brief Introduction

Features

 Test frequency: 10Hz-130MHz

 High precision: using automatic balance bridge technology, four-terminal pair test configuration

 High stability and consistency

 High speed: the fastest test speed up to 5ms

  High resolution: 10.1-inch capacitive touch screen, resolution 1280*800

 Three test methods: point test, list scan, and graph scan

  1601 point multi-parameter list scanning function

  Four-parameter measurement

  4-channel graphic scanning function, each channel can display 4 curves, 16 kinds of split-screen display modes for channels and curves

  Powerful sorting: 10 grades sorting in LCR mode

  Graphic scanning mode, each curve is sorted individually

  High compatibility: Support SCPI instruction set, compatible with KEYSIGHT E4990A, E4980A, E4980AL, HP4284A

Technical Parameter

Model TH2851-130
Display 10.1 Inches TFT LCD Display 1280×RGB×800, Touch Screen
AC Parameter Cp/Cs, Lp/Ls, Rp/Rs, |Z|, |Y|, R, X, G, B, θ, D, Q, VAC, IAC
DC Parameter VDC, IDC,  DCR
Test Frequency Range 10Hz-130MHz
Resolution 1mHz
Relative frequency tolerance ±0.0007%
Test Level AC Voltage 5mV-2Vrms
Resolution 1mV
AC Current 50uA-20mArms
Resolution 10uA
DC Bias Voltage 0V-±40V
Resolution 1mV
Current 0mA-±100mA
Resolution 40μA
Test terminal configuration Four Terminal Pair
Output impedance  25Ω / 100Ω
Typical Test time(Speed) Five Shift:  1(Fast)-5(Accuracy)
1:  2.5ms  2:  10ms   3:  40ms   4:  80ms   5:  400ms
(Does not include the arithmetic average of the communication time, each frequency test speed will be slightly different)
Max Accuracy 1kHz: 0.08%
1MHz: 0.08%
2MHz: 0.5%
10MHz: 1%
130MHz: 5.0%
Test Display Range E means 1,000,000,000,000,000,000
Cs, Cp -9.99999EF -+9.99999EF
Ls, Lp -9.99999EH -+9.99999EH
D -9.99999E -+9.99999E
Q -9.99999E -+9.99999E
R, Rs, Rp, X, Z -9.99999EΩ -+9.99999EΩ
G, B, Y -9.99999ES -+9.99999ES
Vdc -9999V -+9999V
Idc -9999mA -+9999mA
θr -999999rad -+999999rad
θd -180.0deg -+180.0deg
Δ% -999999% -+999999%
Multi-function parameter list scan 1601 points, each point can be set to average, and each point can be sorted separately
Sweep parameters: measurement parameters, test frequency, AC voltage, AC current, DC BIAS voltage, DC BIAS current
Graphic scan parameter Frequency, ACV, ACI, DCV, DCI
Types Logarithmic, linear, frequency segmentation
Points 2-1601
Number of channels 4
Number of curves 4 Per Channel
Split Screen 14 (Channel and Cruve)
Equivalent circuit analysis 3-element model: 4, 4-element model: 3
Sorting 10 levels of sorting in LCR mode; each curve in scan mode is sorted individually
Interface RS232C, USB HOST, USB DEVICE, LAN, GPIB, HANDLER, VGA, HDMI
Power-on warm-up time 60 Minutes
Input Voltage 100-120VAC/198-242VAC Option, 47-63Hz
Power consumption Max 150VA
Measurement (WxHxD)mm3 428x220x325
Weight 14.5kg

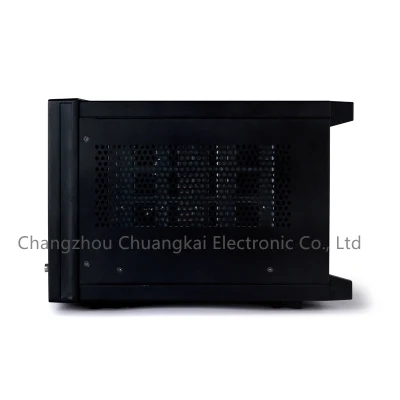

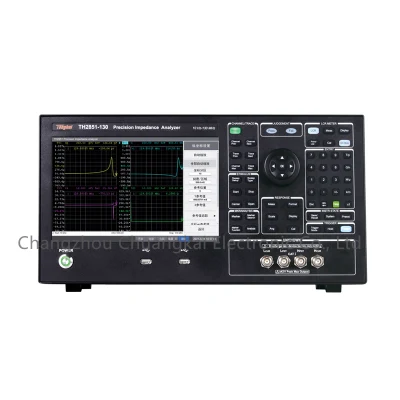

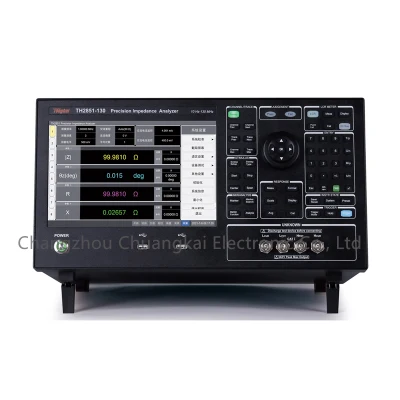

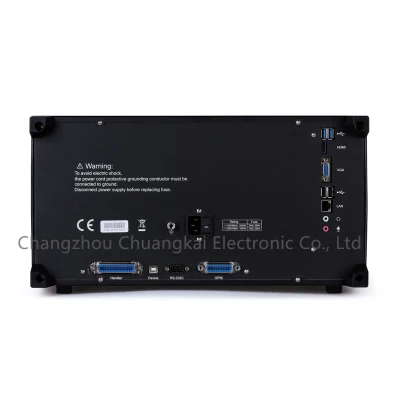

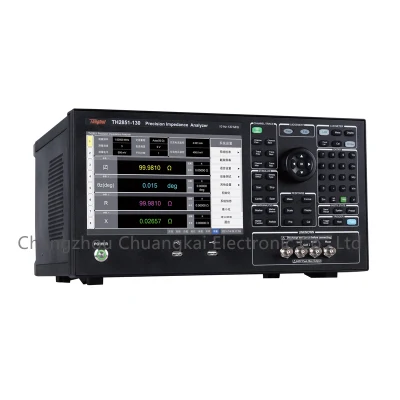

Detailed Photos
