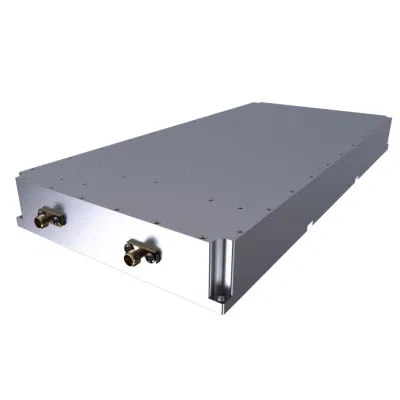

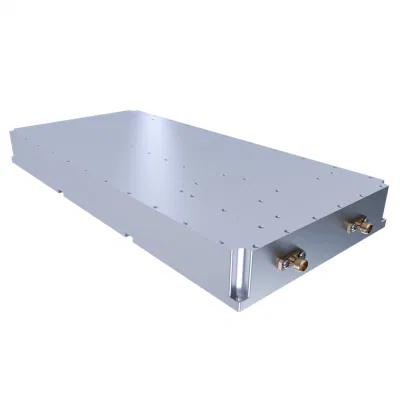

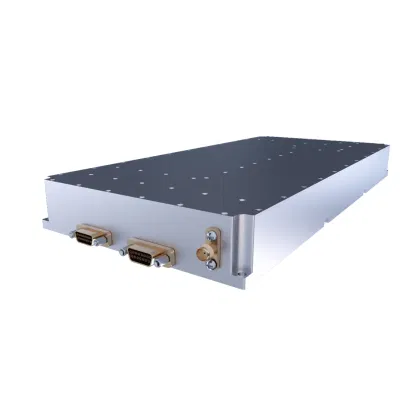

UHF VHF 0.1-0.5GHz 250W Low Power Consumption RF Microwave Solid State Power Amplifier Module

Introducing our UHF VHF 0.1-0.5GHz 250W Low Power Consumption RF Microwave Solid State Power Amplifier Module. We are a factory specializing in high-quality RF microwave products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SWPA001005R5154
Operating Frequency
0.1-0.5GHz
Psat Power
250 Watt
RF Connectors Input
SMA-F
RF Connectors Output
N-F
Impedance
50 Ohms
Power Gain
51 dB
Transport Package
Carton
Specification
360*200*100 mm
Trademark
SWT
Origin
China
Production Capacity
3000 / 3 Months

Product Description

P Band 0.1-0.5GHz 250W Psat Power Low Power Consumption Solid State High Power Amplifier
UHF VHF 0.1-0.5GHz 250W Low Power Consumption RF Microwave Solid State Power Amplifier Module

ELECTRICAL SPECIFICATIONS@25˚C
Parameter Min Typical Max Units
Frequency Range 0.1   0.5 GHz
Power Gain 51     dB
Power Gain Flatness   ±2   dB
Psat Power 250     Watt
Spurious     -60 dBc
Harmonics 15     dBc
VSWR       Ratio
DC Power Supply   +28   Volt
Current   38   A
Note:
         1.Air forced cool.

         2.Output VSWR protection;Over Temperature Protection;Over Input Power Protection;
         3.Current detection, temperature detection, TTL switch control (1ms_max)

ENVIRONMENTAL RATINGS
Parameter Min Typical Max Units
Max Input power       dBm
Operating Temperature -40   +80 ºC
Non-operating Temperature -55   +125 ºC
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD

MECHANICAL SPECIFICATIONS
Parameter Value Limits Units
Dimensions 360*200*100   Milimeter
Weight 15   Kg
RF Connectors Input SMA-F
RF Connectors output N-F
Impedance 50   ohms
  UHF VHF 0.1-0.5GHz 250W Low Power Consumption RF Microwave Solid State Power Amplifier Module

UHF VHF 0.1-0.5GHz 250W Low Power Consumption RF Microwave Solid State Power Amplifier Module

UHF VHF 0.1-0.5GHz 250W Low Power Consumption RF Microwave Solid State Power Amplifier Module

UHF VHF 0.1-0.5GHz 250W Low Power Consumption RF Microwave Solid State Power Amplifier Module
