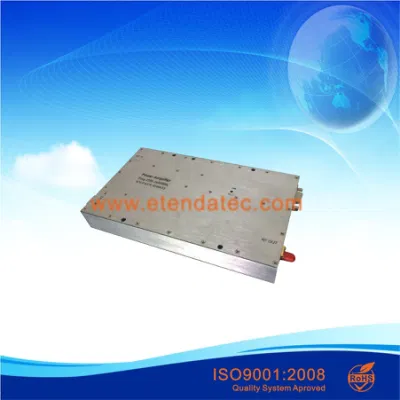

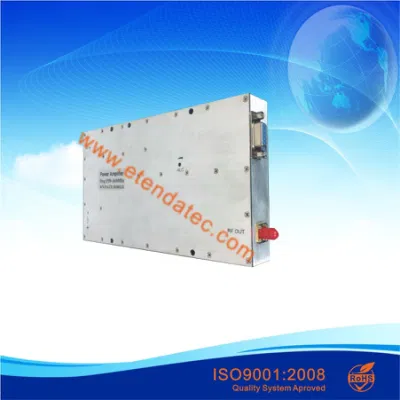

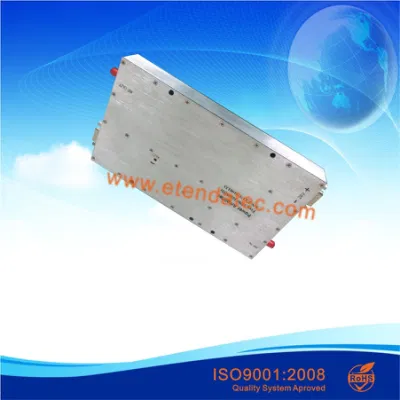

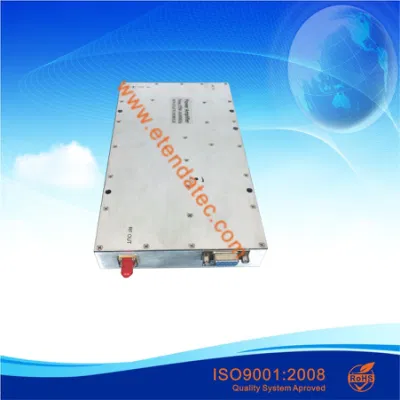

100W 1800MHz High Power Amplifier/PA Module/RF Amplifier/Linear Amplifier/RF Wireless Amplifier

Introducing our 100W 1800MHz High Power Amplifier - a top-quality product from our factory. Boost your RF signal with ease. Explore now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ET-PAD100W
in-Band Ripple(dB)
<2dB
Impedance(Ohm)
50
Power Current
<11A
Input Power
<20dBm
Monitor Interface
RS-485 or RS232 or Other Customized
Transport Package
Carton Packing
Specification
2/5/10/20/40/50/100 watts
Trademark
ETENDA
Origin
Shenzhen
Production Capacity
500PCS/Month

Product Description

100W 1800MHz High Power Amplifier for jammer
This type IMD3 is  ≤-36dBc. All the parameters of PA can be customized depend on your request, if you have any customized parameters pls contact us freely,
Technical Specifications
Frequency(MHz) 1805-1880
Input Power ≤20dBm
Output Power(dBm) 50±1(100W )
Inter-modulation(dBc) ≤-36
ALC Range(dB) ≥25
In-Band ripple(dB) ≤2
Gain(dB) 50 or Customized
Gain Adjustment range(dB) >31/1dB step or Customized
Gain Adjustment Linearity(dB) ≤±1
Gain Flatness(dB) ±0.5(Max)
Impedance(ohm) 50
VSWR ≤1.4:1
Voltage(V) DC+28
Power current ≤11A
RF Connector SMA-50K or other Customized
Monitor interface RS-485 or RS232 or other Customized
Monitoring communication protocols Use Manufacturers protocol or Customized
Working Temperature -40~+65 degree
Storage Temperature -55 to +85 degree
Operating Humidity 0 to 90%, relative
Surface Color Metal color conductive oxide and other color customized
weight  2.8KG
Remark Module with output short circuit or open circuit protection

100W 1800MHz High Power Amplifier/PA Module/RF Amplifier/Linear Amplifier/RF Wireless Amplifier


Monitoring Function Description :
No. Monitoring function Description
1 query PA ALARM When an alarm amplifier failure
2 SWR ALARM Amplifier output reflection is too large, VSWR exceeds 3:1, an alarm is generated
3 Over temperature alarm Module internal temperature exceeds 85 ºC, generates an alarm and turn off the amplifier until the temperature returns to below 65 ºC, re-open the amplifier
4 Over  output power alarm When the output power exceeds the nominal full power 2dB is an alarm
5 Input power detection Accuracy of ± 1dB
6 Reverse power detection Accuracy of ± 1dB
7 output power detection Detecting the actual output power amplifier,Accuracy of ± 1dB
8 Temperature detection Detection module operating temperature, detection range: -25 ~ +90 ºC, Accuracy of ± 3 ºC
10 SWR Detecting amplifier output port VSWR range of 1.2 ~ 4.0
11 query and set PA attenuator Set and query Set and query the value of ATT
12 PA switching query and set Query and set the state open tube amplifier
