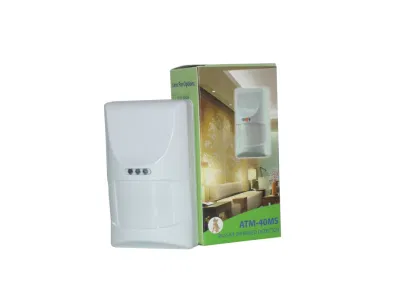

Wired Indoor PIR Motion Detector with Long Range Detection

Get reliable long-range motion detection with our Wired Indoor PIR Motion Detector. Manufactured in our factory for top performance. Shop now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ATM-40MS
Detection Distance
12m 100 Degrees
Installation Height
1.5m-2.4m
Sensitivity
L/H for Option
Rfi/EMI Protection
>30V/M 500MHz
Alarm Output
100mA/24V
Transport Package
Gift Box/ White Box
Specification
CE
Trademark
Sunlit Tech
Origin
China
HS Code
8531100000
Production Capacity
50000PCS/Month

Product Description

Wired Indoor PIR Motion Detector with Long Range Detection Wired Indoor PIR Motion Detector with Long Range Detection Wired Indoor PIR Motion Detector with Long Range Detection Wired Indoor PIR Motion Detector with Long Range Detection
Detailed Product Description

This indoor PIR detector is very stable in function, its appearance is designed by European engineer and it is with NO/NC for option, temparature compensation makes it stable for indoor protection. It is with pet immunity up to 25kg.

Features:

* Adopt advanced and stable circuit design, very low rate of failure alarm and false alarm.
* Fine anti-interference-30V/m from 30MHz to 1000MHz
* Excellent Fresenel optical lens, more powerful ability of capturing of human infrared ray.
* Automatic alternation pulse count.
* Dual-layer structure temperature compensation technology, which has solved the problem of interference from normal temperature.
* ESD,anti electric-strike and interference from mobile phone.
* Low power consumption. (<10 mA stand by,17mA alarm)
* Pulse count for option. (1,2 or 3)
* Various kinds of lens for option. (4 types: curtain, pet-immunity, wide-angle, long-distance)
* Detection range for curtain lens: 12*6m
* Detection range for pet-immunity lens: 12*12m
* Detection range for wide-angle lens: 12*12m
* Detection range for long-distance lens: 28*6m
Wired Indoor PIR Motion Detector with Long Range DetectionWired Indoor PIR Motion Detector with Long Range DetectionWired Indoor PIR Motion Detector with Long Range DetectionWired Indoor PIR Motion Detector with Long Range Detection

parameter:

Operation voltage/current 9-16V/DC 15mA
Detection distance 12m 100°
Installation height 1.5m-2.4m
Sensitivity L/H for option
RFI/EMI protection >30V/m 500MHz
Alarm output 100mA/24V
Anti-mask /trouble output 300mA/24V
Operation temperature -20ºC~+40ºC
Operation humidity 5%-95%(RH)
Anti white light >10000LUX
Pet immunity 20Kg
Detection speed 0.2m/s to 3.5m/s
Wired Indoor PIR Motion Detector with Long Range Detection
Wired Indoor PIR Motion Detector with Long Range DetectionMulti-directional bracket for option
